|Control Method:||PLC||Display Mode:||7" Touch Screen|
|Drive Mode:||Servo Motor||Applied Standard:||IEC 60669-1, IEC 60884-1, IEC 61058-1,etc.|
|Test Specimen:||Linear Plugs, Sockets, Switches||Test Station:||1 Station|
|Linear Stroke:||0-100mm||Load Power:||Cooperate With External Load Cabinet|
IEC 60669-1 Switches Life Tester,
Linear plugs Switches Life Tester,
Normal Operation Switches Life Tester
IEC 60884-1 IEC 60669-1 Plugs Socket-outlets Switches Normal Operation Life Tester

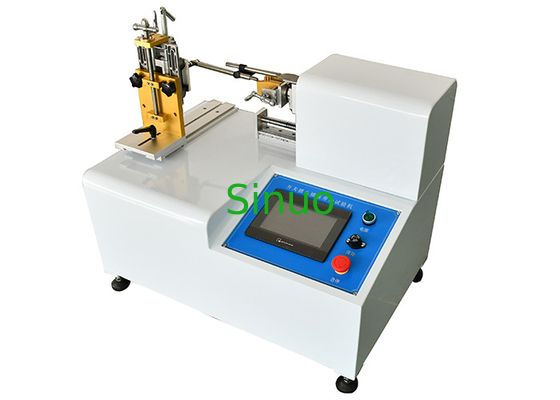

The test equipment has one signle station, which can test linear switches including self-locking switches, plugs and socket-outlets by replacing different sample fixtures.
This device complies with standard terms of IEC60669-1 clause 18 and 19, IEC 60884-1: 2013 clause 20, 21, figure 16, IEC 61058-1, IEC60065:2014 clause14.7 and clause 15.1, etc.
Working together with a load cabinet (the load cabinet is not included in this equipment), can achieve making and breaking ability test and the normal operation endurance test of the plugs, sockets and switches for household and similar fixed-electrical installations. The testing purpose is to see whether the switches or the plugs and sockets can endurance the mechanical damage or electric fatigue failure during the normal operation. Whether the contact adhesion occurs or there is a phenomena of being the on (off) station for a long time, which is the criterion of judging the sample is over damage or not.
The equipment is suitable for the load current less than 25A plugs, sockets, push-button switches, toggle switches, rocker switches.
The device is made of aluminum alloy rack, stainless steel seal plate, driven by a servo motor and ball screw, controlled by PLC, with 7-inch color touch-screen display, and test parameters such as testing rate, and strokes can be set on the touch screen.
|1||Power||220V±10V, 50Hz (or match client's local power supply requirements)|
|2||Station||Single station (can be customized)|
|3||Operation interface||7-inch color LCD touch screen|
|4||Drive mode||servo motor + ball screw|
|5||Control system||PLC control system|
|6||Test times||0～999999 times, can be preset|
|7||Conduction time||0～99.9s, can be preset|
|8||Close time||0～99.9s,can be preset|
|9||Test stroke||Linear: 0～100mm, can be preset|
|10||Test speed||Linear: 0～200mm/s,can be preset|
|14||Use environment||Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place|
|15||Dimensions and weight||L*W*H=960*730*600mm,160kg|
