BS EN 12983-1 Figure M.1 Cookware Handle Pull Resistance Test Apparatus

BS EN 12983-1 Figure M.1 Cookware Handle Pull Resistance Test Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1605
Test Contents:
Pull Resistance Test
Applied Standard:
BS EN 12983-1
Applied Clause:
Clause 7.11 And Appendix M
Appled Figure:
Figure M.1
Impact Hammer:
Steel, 1kg±50g
Guide And Stop:
Metal, 10kg±50g
Drop Height:
150±5mm
Test Station:
Single Station
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

Cookware Handle Pull Resistance Test Apparatus

,

EN 12983-1 Resistance Test Apparatus

Product Description

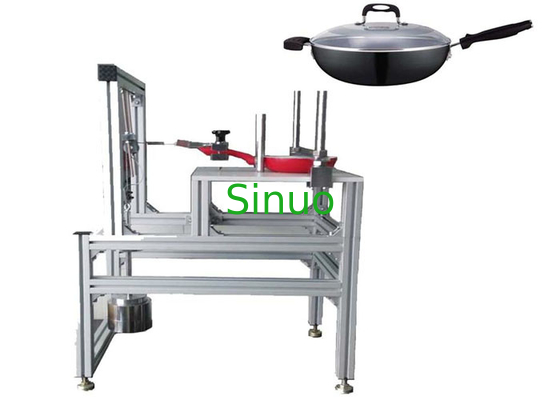

BS EN 12983-1 Cookware Handle Pull Resistance Test Apparatus



Product information:



It is used for testing resistance to pull on cookware handles. When the handle is subjected to horizontal pull, the degree of deformation cannot affect the function of the handle. After the test, the fasteners are not loosened. It is used to evaluate the pull resistance capacity of the cookware handle.



Applied standard:


The design of the handle torque resistance test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.11 and Appendix M.



Technical Parameters:



1. The mass of steel impact hammer: 1kg±50g

2. The mass of metal guide and stop: 10kg±50g

3. The drop height: 150±5mm

4. The handle axis of the cookware can be adjusted to be 0°±1 °from horizontal by adjusting the mounting brackets

5. Dimensions: length * width * height: 700mm*500mm*900m

6. Install the cookware, adjust its handle to be horizontal, clamp the handle, apply the weight of the guide and the stop to the soft rope, raise the impact weight to the upper limit (150mm), and release it to the stop. Complete the pull test.



The mass of steel impact hammer 1kg±50g
The mass of metal guide and stop 10kg±50g
The drop height 150±5mm
Dimensions Length * width * height: 700mm*500mm*900m
Power supply Match client's local power grid



BS EN 12983-1 Figure M.1 Cookware Handle Pull Resistance Test Apparatus 0
