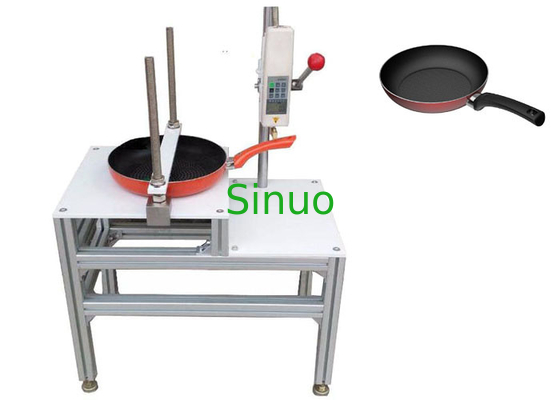

BS EN 12983-1 Cookware Handle Bending Strength Test Apparatus
| Test Contents: | Bending Strength Test | Applied Standard: | BS EN 12983-1 |
| Applied Clause: | Clause 7.5 And Appendix D | Appled Figure: | Figure D.1 |
| Loading Bar Diameter: | Ф10±0.1mm | Range of Force: | 1-200N |
| High Light: | BS EN 12983-1 Strength Test Apparatus,Cookware Bending Strength Test Apparatus,200N Cookware Bending Strength Tester |
||
BS EN 12983-1 Cookware Handle Bending Strength Test Apparatus
Product information:
It is used for the bending strength test of the handle of the cookware. The fastening connecting part of the handle bears a force of 100N, and there should be no failure in the joints such as riveting and welding.
Applied standard:
The design of the handle bending strength test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.5 and Appendix D.
Technical Parameters:
1. D-section loading bar diameter: Ф10±0.1mm
2. Range of force: 1-200N
3. Scale resolution: 0.1N
4. Dimensions: length * width * height: 400mm*532mm*500m
5. Attach the cookware firmly to the horizontal rigid base, so that the contacting face of the loading bar is 10mm±1mm from the end of the handle, and then apply 100N pressure vertically.
| Loading bar type | D-section |
| Loading bar diameter | Ф10±0.1mm |
| Range of force | 1-200N |
| Scale resolution | 1° |
| Dimensions | Length * width * height: 400mm*532mm*500m |
| Power supply | Match client's local power grid |
