| Test Contents: | Torque Resistance Test | Applied Standard: | BS EN 12983-1 |
|---|---|---|---|
| Applied Clause: | Clause 7.4 And Appendix C | Appled Figure: | Figure C.1 |
| Balance Lever Length: | 1 Meter | Balance Lever Weight: | 1±0.1kg |
| Test Mass: | 1kg | Scale Resolution: | 1° |
| High Light: | Cookware Torque Resistance Test Apparatus,BS EN 12983-1Resistance Test Apparatus |
||

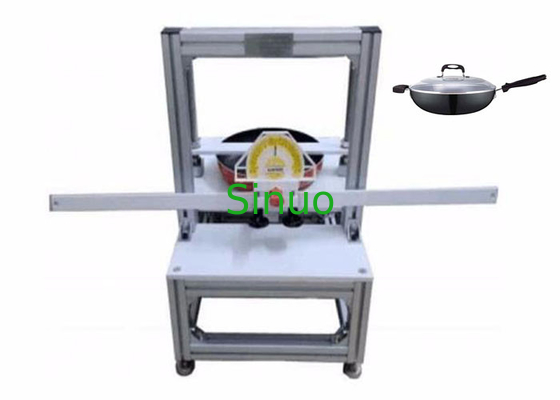

BS EN 12983-1 Cookware Handle Torque Resistance Test Apparatus
Product information:
It is used for resistance test to torque of cookware handle. The torsion deformation of the handle in all directions does not exceed 10°. The degree of deformation cannot affect the function of the handle. After the test, the fasteners are not loosened. It is used to evaluate the torque resistance of the cookware handle.
Applied standard:
The design of the handle torque resistance test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.4 and Appendix C.
Technical Parameters:
1. The balance lever is 1 meter long and weight 1±0.1kg (including accessories and pointers, handle holder)
2. Test mass: 1kg
3. Scale resolution: 1°
4. Dimensions: length * width * height: 1100mm*532mm*389m
5. Install the lever assembly to the midpoint of the length of the handle, and adjust the test frame to make the handle level, and then hang the weights on the left and right end of the test lever for 30 seconds respectively, and record the pointer angle, which should not exceed 10°.
| Balance lever | 1 meter long and weight 1±0.1kg (including accessories and pointers, handle holder) |
| Test mass | 1 kg |
| Scale resolution | 1° |
| Dimensions | Length * width * height: 1100mm*532mm*389m |
| Power supply | Match client's local power grid |
