| Output Voltage: | 6kV (Max) | Internal Resistance: | 40Ω Or 500Ω |
|---|---|---|---|
| Impulse Wavefront Time: | 10 µs ± 30 % | Half Value Of After Wave Time: | 700 µs ± 20 % |
| Peak Voltage Range: | 0kV~6kV | Impact Interval Time: | 30~999s |
| Impact Cycles: | 1 ~ 9999 | Applied Standard: | IEC 60335-1, IEC 60065, Etc. |
| High Light: | 700 µs Impulse Voltage Test Generator,10µs Impulse Voltage Test Generator |
||

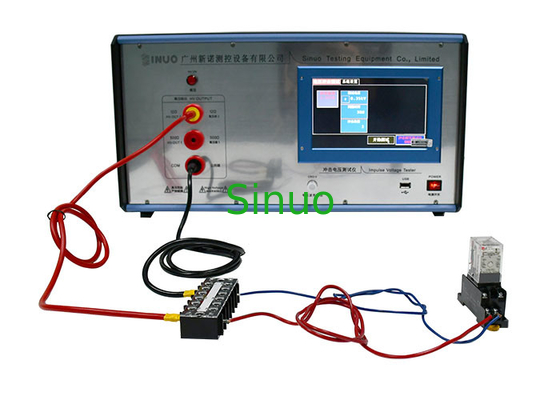

IEC 60065 6KV 10/700 μs Impulse Voltage Test Generator
Product information:
This impulse voltage test generator is required by IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60950, and etc.
It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance of audio, video and similar electronic apparatus.
This impulse voltage test generator is a standard lightning wave test device with waveform 10/700 µs. Wavefront time is 10 µs, wave after time is 700 µs, it is a destructive tester. The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical Parameters:
| Model | SN1104-2 |
| DC high voltage | 6kV |
| Impulse voltage wave | Impulse wavefront time: 10 µs ± 30 %
Half value of after wave time: 700 µs ± 20 % Note: the waveform will be shown by an external oscilloscope (oscilloscope should be prepared by user). |
| Instrument internal resistance | 40Ω ± 10% |
| Internal resistance converter box | 500Ω - 10% , optional |
| Peak voltage: 300 V~ 12,500V | 0kV~6kV, ± 5% |
| Impact interval time | 30~999s |
| Impact cycles | 1 ~ 9999 |
| Polarity | Positive and negative |
| Working power source | Match client’s local power supply requirements |
| Dimension | 630mm×600mm×380mm |
| Weight | 30 KG |
Equipment features:
All parameters can be set on the touch screen. After the sample is connected, click "Start Test" to start the test.
The test interface as shown in the figure below, and the high-voltage warning light flashes intermittently, indicating that the test is in progress. After the test is completed, it will stop automatically.
