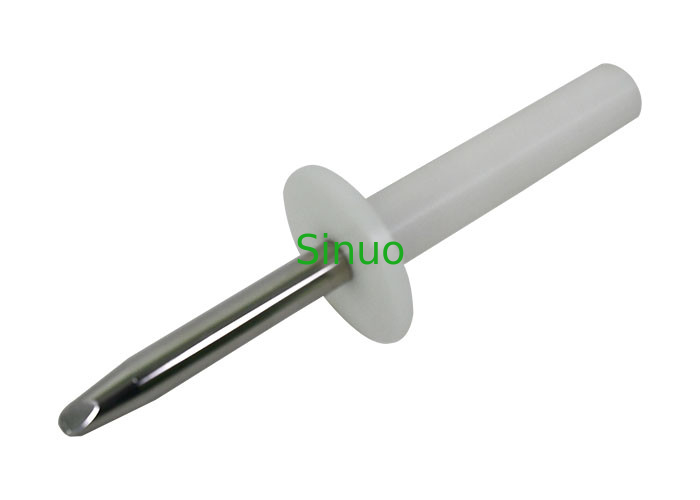

IEC 61032 Figure 7 Unjointed Test Probe 11 For Verifying Enclosure Openings
  • name
  • name
  • name
  • name

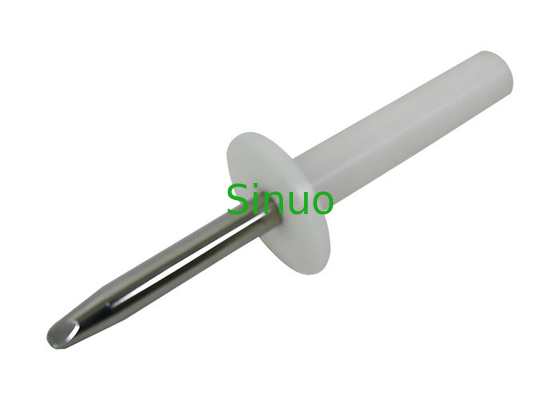

IEC 61032 Figure 7 Unjointed Test Probe 11 For Verifying Enclosure Openings

MOQ: 1
Price: Negotiable
Standard Packaging: Aluminium Box
Delivery Period: 3 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-7
Applied Standard:
IEC 61032
Applied Figure:
Figure 7
Probe Tip Length:
20 ( 0, -0.05) Mm
Probe Tip Cylindrical Radius:
R2mm±0.05mm
Probe Tip Spherical Radius:
R4mm±0.05mm
Probe Tip Cylindrical Angle:
37°( 0, -10’)
Probe Tip Spherical Angle:
14°( 0, -10’)
Probe Length With Tip:
80mm±0.2mm
Highlight:

Figure 7 Unjointed Test Probe

,

IEC 61032 Unjointed Test Probe

Product Description



IEC 61032 Figure 7 Test Probe 11



IEC 61032 Figure 7 Unjointed Test Probe 11 For Verifying Enclosure Openings


Product Overview:

This probe conforms to the standard requirements of IEC61032 fig.7 test probe 11, IEC 60065:2014 clause 9.1.7, etc. This probe may be used to verify the protection of persons against access to hazardous parts and to verify the mechanical strength of openings in the enclosure of internal barriers.



Probe Dimension:

Probe Tip Length (mm) 20 0 -0.05
Probe Tip Cylindrical Radius (mm) R2±0.05
Probe Tip Spherical Radius (mm) R4±0.05
Probe Tip Cylindrical Angle (°) 37o 0 -10’
Probe Tip Spherical Angle (°) 14 o 0 -10’
Probe Diameter (mm) Ф12 0 -0.05
Probe Length with Tip (mm) 80±0.2
Probe Material Stainless Steel
Guard Diameter (mm) Ф50
Guard Thickness (mm) 5±0.5
Handle Material Nylon
Handle Length (mm) 100

Operation:

Please refer to the relevant standards.

Take IEC 60065:2014 clause 9.1.7 as an example:

The enclosure of the apparatus shall be sufficiently resistant to external forces. Compliance is checked by the following tests:

by means of a rigid test finger according to IEC 61032:1997, test probe 11, a force of

50 N ± 5 N, directed inwards, is applied for 10 s to different points of the enclosure

including openings and textile coverings.

The force shall be so exerted by the tip of the test finger as to avoid wedge or lever action.

During the test, the enclosure shall not become HAZARDOUS LIVE, HAZARDOUS LIVE parts

shall not become ACCESSIBLE, textile coverings shall not touch HAZARDOUS LIVE parts.



The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:

IEC 61032 Figure 7 Unjointed Test Probe 11 For Verifying Enclosure Openings 0





Tags:

switch endurance tester,

Switch tester,

plug socket tester
