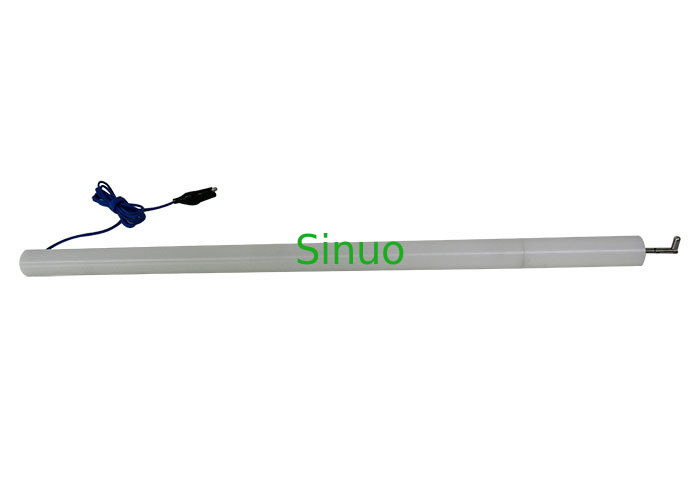

IEC 61032 Figure 13 Test Probe 19
Product Overview:
This probe conforms to the standard requirements of IEC 61032 figure 13 test probe 19, IEC 60065:2014 clause 9.1.1.3, etc. This probe is intended to simulate access to hazardous parts by children of 36 months or less.
Probe Dimension:
| Hemispherical radius (mm) | R2.8±0.05 |
| Finger probe diameter (mm) | Ф5.6±0.1 |
| Finger probe length (mm) | 44±0.15 |
| Axes of joints distance (mm) | 14.67 |
| Collar diameter (mm) | Ф25.9±0.3 |
| Collar length (mm) | 101.6±0.3 |
| Extension handle diameter (mm) | Ф25.4±0.3 |
| Extension handle length (mm) | 464.3±0.8 |
| Finger probe material (mm) | Stainless steel |
| Collar and handle material (mm) | Nylon |
Please refer to the relevant standards.
Take IEC 60065:2014 clause 9.1.1.3 as an example:
The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.
For verifying whether the LIVE PARTS touched, the probe is equipped with amphenol connector, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:
