IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
| Applied Standard: | IEC 61032 | Applied Figure: | Figure 9 |
| Metal pin Tip Diameter: | Ф3mm | Metal pin Tail Diameter: | Ф4mm |
| Handle Material: | Nylon | Handle Length: | 20mm |
| High Light: | Figure 9 Test Probe 13,IEC 61032 Test Probe 13 |
||

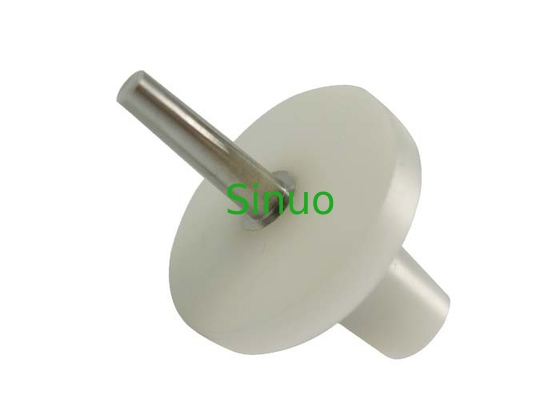

IEC 61032 Figure 9 Test Probe 13
Product Overview:
This probe conforms to the standard requirements of IEC 61032 figure 9 test probe 13, IEC60950 figure 2B, IEC 60335-1 clause 8.1.2, etc. This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.
Probe Dimension:
| Metal pin tip diameter (mm) | Ф3 0 -0.05 |
| Metal pin tail diameter (mm) | Ф4 0 -0.05 |
| Metal pin length (mm) | 15 0 -0.1 |
| Guard diameter (mm) | Ф25±0.2 |
| Guard thickness (mm) | 4 |
| Handle diameter (mm) | Ф10 |
| Handle length (mm) | 20 |
Please refer to the relevant standards.
Take IEC 60335-1 clause 8.1.2 as an example:
Test probe 13 of IEC 61032 is applied without appreciable force through openings in class 0 appliances, class II appliances and class II constructions, except for those giving access to lamp caps and live parts in socket-outlets.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:
