Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101

Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 5 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1118
Applied Standard:
IEC 60335-2-15
Applied Figure:
Figure 101
Tube Diameter:
8 Mm
Tube Length:
30 Mm
Solution Volume:
30 Ml
Solution Type:
30ml Water Containing 1% Of NaCl
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
5 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
100 sets per month
Highlight:

Figure 101 Moisture Resistance Test Apparatus

,

8mm Moisture Resistance Test Apparatus

Product Description

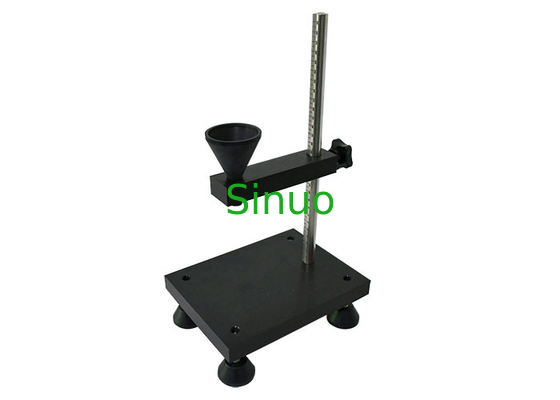

IEC 60335-2-15 Figure 101 Steam Sterilizer Spillage Test Apparatus



Product overview:

The spillage test apparatus is designed and manufactured according to IEC 60335-2-15 clause 15.2 figure 101, and IEC60320-1 clause 14.2 figure B.1.

It is intended for checking the weight of the protective measures against liquid overflow to ensure that the structure of the plug-in connector (cordless electric kettle) is not affected by liquid when it is installed in an alternative voltage base following the manufacturer’s installation instructions.



Technical parameters:

Tube Diameter  8 mm
Tube Length 30 mm
Test Solution Volume 30 ml
Test Solution Type 30ml water containing 1% of NaCl
Distance from the lower end of tube to the appliance 200 mm, adjustable
Apparatus Material Plastic

How to process the moisture resistance of steam sterilizers?

Steam sterilizers are placed on a horizontal surface and ml of water containing approximately 1% NaCl is poured onto the top rim in the most unfavourable place. The solution is poured steadily through a tube having an inner diameter of 8 mm over a period of 2 s, the lower end of the tube being 200 mm above the appliance.
