ASTM D5132 Car Interior Materials Flammability Test Chamber

small.img.alt small.img.alt small.img.alt small.img.alt

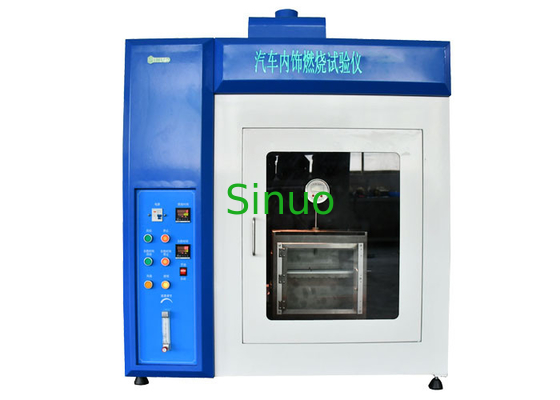

Large Image :  ASTM D5132 Car Interior Materials Flammability Test Chamber

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN776
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 20 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 Sets Per Month
Detailed Product Description
Applied Standard: ISO3795, DIN75200, ASTM D5132-17 Combustion Chamber: L385mm *D204mm*H360mm
Specimen Holder: U-shaped Burner Material: Made Of Brass
Test Gas: Natural Gas, City Gas, Liquefied Ga Timer Accuracy: ≤0.5s
Flame Height: 38mm±2mm Metal Comb: At Least 110mm
High Light:

ASTM D5132 Flammability Test Chamber


Car Interior Flammability Test Chamber


0.5s Flammability Test Equipment


ASTM D5132 Car Interior Materials Flammability Test Chamber New Version


Product overview:

This car interior flammability test chamber is intended for comparing the relative horizontal burning rates of polymeric materials used in occupant compartments of motor vehicles (cars, multi-purpose passenger cars, trucks and buses). It conforms to ASTM D5132-17, TL1010, ISO3795, DIN75200, GB8410 and etc.


Test principle:

The specimen is horizontally held on the U-shaped frame, and after the free end of the sample is ignited for 15 seconds in the combustion chamber using a predetermined height flame, it is determined whether the flame on the specimen is extinguished, or when it is extinguished, the burnt distance and the time to burn distance.


Technical parameters:

System Composition Control devices, combustion chamber, burner, flow meter, specimen fixture, air pipe and fume hood
Control Devices The control part is installed on the left side of the combustion chamber, which integrates timing, flow regulation, lighting, and fan on the control panel.
Flame Application Timer 0~999.9/S/M/H, can be preset, accuracy ≤0.5s
Burning Timer 0~999.9/S/M/H, accuracy ≤0.5s
Flame Height 38mm, observed through a 38mm flame height gauge, adjustable by flow meter
Burner Inner diameter is 9.5 mm. It is located in the test cabinet so that the center of its nozzle is 19mm below the center of bottom edge of open end of the sample. It is made of brass and with auto ignition function.
Specimen Holder U-shaped bracket: made of two U-shaped corrosion-resistant metal slabs, the upper bracket has 6 pin holes, the lower bracket has 6 pins, the support is in the form of 0.25mm diameter heat-resistant wires spanning the frame at 25mm intervals over the bottom U-shaped frame. The plane of the lower side of samples shall be 178mm above the floor plate. The distance of the front edge of the sample holder from the end of the chamber shall be 22mm, the distance of the longitudinal sides of the sample holder from the sides of the chamber shall be 50mm
Test Gas The gas supplied to the burner shall have a calorific value of approximately 38MJ/m³, such as natural gas, city gas, liquefied gas
Metal Comb At least 110mm in length, with seven to eight smooth rounded teeth per 25mm
Combustion Chamber Length: 385mm, depth: 204mm and height: of 360mm. There are ten venting holes with a diameter of 19mm at the bottom of the combustion chamber. The four side walls have 13mm wide ventilation groove near the top. The top of the combustion chamber is provided with a hole for inserting a thermometer. The hole is arranged at the center of the top, and the center of the hole is 20 mm from the inner side of the rear panel. A collecting tray for collecting molten drippings is placed at the bottom of the combustion chamber, and the tray is placed between the two rows of venting holes without affecting the ventilation of the venting holes.
How to calculate the burning rate? Take ISO 3795 as an example.
The burning rate , B, in millimetres per minute, is given by the formula
                              B=s/t x60
 s is the burnt distance, in millimetres
 t  is the time, in seconds, to burn distance s
ASTM D5132 Car Interior Materials Flammability Test Chamber 0
