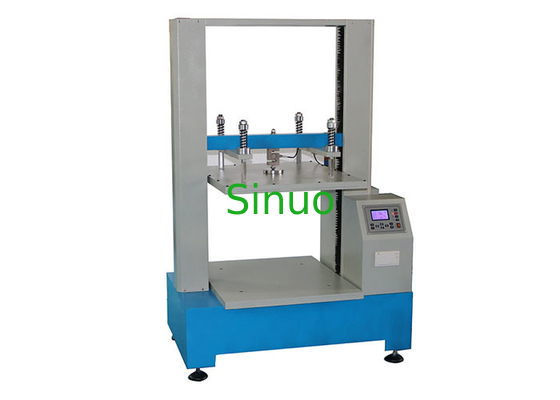

Clause 21.101 1.5kN Crushing Resistance Test Equipment IEC 60335-2-2

Clause 21.101 1.5kN Crushing Resistance Test Equipment IEC 60335-2-2

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1702
Control Method:
Micro-computer
Test Station:
One
Test Plate:
L100mm*W50mm, R1mm
Pressure Capacity:
1 ~ 2000N
Crushing Rate:
50mm ± 5mm / Min
Crushing Distance:
350mm
Applied Standard:
IEC 60335-2-2
Applied Clause:
Clause 21.101
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
Highlight:

1.5kN Crushing Resistance Test Equipment

,

IEC 60335-2-2 Crushing Resistance Test Equipment

Product Description



IEC 60335-2-2 Vacuum Cleaners Current-Carrying Hoses Crushing Resistance Testing Equipment



Standards & Clauses:



This current-carrying hoses crushing resistance test equipment meets the requirements of IEC 60312-2-2 clause 21.101.

It is used to assess the vacuum cleaners or water-suction cleaning appliances' current-carrying hoses should be resistant to crushing.



Test Procudures (Extracted from IEC 60035-2-2:2019 clause 21.101):



The hose is placed between two aprallel steel plates each having a length of 100mm, a width of 50mm and the edges of the longer sides rounded with a radius of 1mm. The axis of the hose is positioned at right angles to the longer sides of the plates. The plates are placed at a distance of approximately 350mm from one end of the hose.



The steel plates are pressed together at a rate of 50mm/min± 5mm/mim until the applied force is 1.5kN. The force is them re;leased and the electric strength test is carried out between the conductors connected together and the saline solution.





Technical Parameters:



Input Power Match client's local power supply requirements
Control Method Micro-computer, LCD touch screen
Station One (can be customized)
Required test plate Length of 100mm, a width of 50mm and the edges of the longer sides rounded with a radius of 1mm
Crushing method Stepper motor pressure
Crushing force range 1 ~ 2000N using high-precision pressure sensor
Crushing rate 50mm/min± 5mm/mim
Crushing distance 350mm
Testing times

0 to 999999 times can be preset

Clamping mechanism The special fixed fixture can be fastened and clamped easily and conveniently. (The actual fixture is subject to the standard sample provided by the customer)
