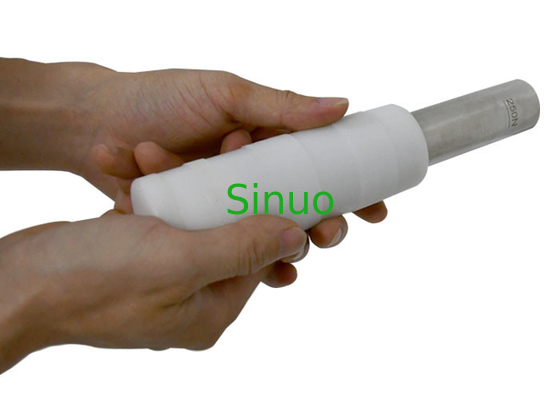

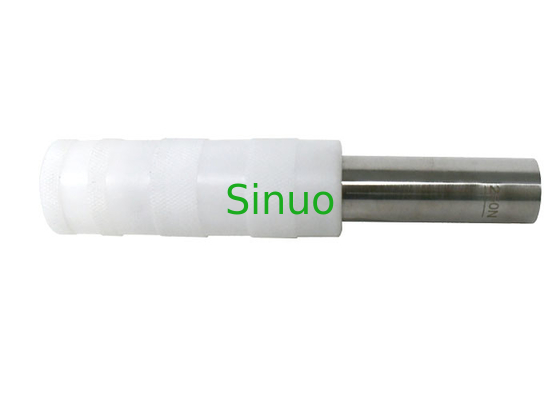

IEC 60950 100N Stainless Steel Ф30 mm Diameter Thrust Rod with Nylon Handle
  • name
  • name
  • name
  • name

IEC 60950 100N Stainless Steel Ф30 mm Diameter Thrust Rod with Nylon Handle

MOQ: 1
Price: Customized
Standard Packaging: Aluminium Box
Delivery Period: 3 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-34
Applied Standard:
IEC 60950 & IEC 60065
Rod Diameter:
Ф30 Mm
Steady Force:
250N Or 100N
Rod Material:
Stainless Steel
Handle Material:
Nylon
Force Applied Method:
Manually
Highlight:

250N Thrust Rod

,

IEC 60950 Thrust Rod

Product Description



IEC 60950 250N or 100N Force Stainless Steel Ф30 mm Diameter Thrust Rod



Product Overview:



The thrust rod conforms to IEC 60950: 2013 clause 4.2.4, IEC 60065:2005 clause 9.1.7 c), IEC 60884.1-2002 and etc.

It is used to process steady force test to external enclosures.



Technical Parameters:



Diameter of circular plane surface of force applied Ф30 mm
Applied steady force 250 N ± 5 N or 100 N ± 5 N
Rod material Stainless steel
Handle material Nylon


Operation steps:



Please refer to the relevant standards.

Take IEC60950: 2013 clause 4.2.4 as an example:

External ENCLOSURES are subjected to a steady force of 250 N ± 5 N for a period of 5s, applied in turn to the top, bottom and sides of the ENCLOSURE fitted to the equipment, by means of a suitable test tool providing contact over a circular plane surface 30 mm in diameter. However, this test is not applied to the bottom of an ENCLOSURE of equipment having a mass of more than 18 kg.

IEC 60950 100N Stainless Steel Ф30 mm Diameter Thrust Rod with Nylon Handle 0
