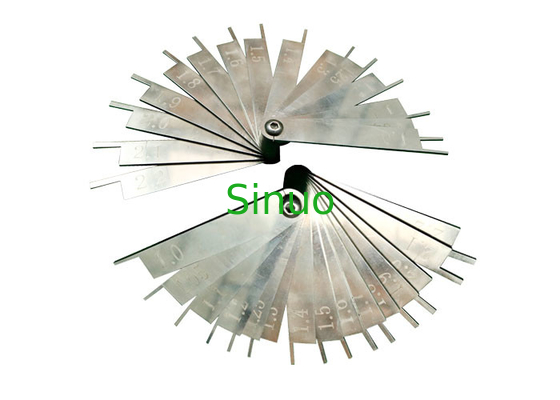

Electrical Clearance Measuring Gauge IEC 60335-1 Clause 29 Creepage Distance Test Cards
  • name
  • name
  • name
  • name

Electrical Clearance Measuring Gauge IEC 60335-1 Clause 29 Creepage Distance Test Cards

MOQ: 1
Price: Customized
Standard Packaging: Carton Box
Delivery Period: 3~5 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 100 pcs per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2134
Standard:
IEC 60335-1
Clause:
Clause 29
Sizes:
30 Sizes / Set
Material:
Stainless Steel
Test Sample:
Electrical Clearance Of Appliances
Product Name:
Creepage Distance Test Cards
Highlight:

ac hipot test equipment

,

glow wire test equipment

Product Description



IEC 60335-1 Clause 29 Creepage Distance Test Cards for Measuring Electrical Clearance



Standards & Clauses:



IEC60335-1 Clause 29 , IEC 60065 Clause 13, IEC60884-1, IEC60598, and etc



Samples and Restrictions:



Electrical clearance of household appliances, electrical accessories, lamps, etc.



Application:



The gauges are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.





Technical Parameters:





The set of creepage distance gauges are integrated with 30 pieces of creepage distance gauges:

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Material: Stainless steel


Electrical Clearance Measuring Gauge IEC 60335-1 Clause 29 Creepage Distance Test Cards 0
