5 In 1 Desktop Electrical Safety Compliance Test Equipment LCD Display PLC Control

5 In 1 Desktop Electrical Safety Compliance Test Equipment LCD Display PLC Control

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2212A
Standards:
IEC UL VDE BS And Etc.
Application:
Electrical Safety Test
Test Contents:
Multiple
Structure:
Desktop
Control:
PLC
Display:
LCD
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

ac hipot test equipment

,

glow wire test equipment

Product Description



5 in 1 Desktop Electrical Safety Compliance Tester


Standards & Clauses:

IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements”
IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1: General requirements”
IEC60950-1:2013 “Information technology equipment-Safety-Part1: General requirements”
IEC60065:2014 “Audio, video and similar electronic apparatus-Safety requirements”

Samples and Restrictions:

Household appliances, electrical accessories, lamps, etc.

Application:

Various types of home appliance manufacturers, as well as institutions that conduct home appliance safety testing and certification, research institutes


Test Contents:

AC withstand voltage, insulation resistance, grounding resistance, leakage current, power test

Features:

■ 5.7” Blue background LCD display, data display is intuitive and clear
■ Meet standard requirements of CCC,IEC,EN,VDE,BS,GS,UL, etc.
■ Industrial computer system is optional, which supports to add barcode scanner to achieve automatic control and data entry, build production data management platform, and can be integrated into production management system
■ Variable frequency power supply is optional, which supports to form an automatic test system, realize automatic adjustment of test power supply output, without manual intervention, to ensure accurate test results
■ 15 sets memory of test condition, 8 test steps in each group, specifications of each group can be set separately, easy for query
■ Fast speed: The control core of the test instrument adopts ARM high-speed processor, the data processing is comprehensive and fast
■ Withstand voltage can be ramped up and ramp downed, has upper and lower limit alarm functions
■ Adopts digital closed loop feedback control, and fully automatic pressure regulation mode, the output voltage/current is automatically corrected and is not affected by external grid fluctuations, ensuring the accuracy of the test
The grounding resistance test can select voltage mode or resistance mode, to meet different national/industry standards
■ Built-in leakage current body network as per IEC 60990 figure 4, can customize other body networks - optional
■ Standard PLC remote control, RS232 and alarm light interfaces

Technical Parameters:



AC Withstand Voltage Test
Output voltage setting range / accuracy AC 200~5000V, ± (3% × setting + 5 words)
Breakdown current measurement range / accuracy 0.10~25.00mA, ± (3% × reading + 5 words)
Breakdown current preset alarm range Upper limit: 0.10~25.00mA; lower limit: 0.00~5.00mA
Test time range / resolution 1~300s, 1s/step
Insulation Resistance Test
Output voltage setting range / accuracy DC 500/1000V, ± (3% × reading + 5 words)
Insulation resistance measurement range / accuracy

1~2000MΩ
≤100MΩ: ± (5% × reading + 3 words)
>100 MΩ: ± (8% × reading + 8 words)

Insulation resistance alarm setting range

Upper limit: 0 to 2000 MΩ
Lower limit: 1 to 2000 MΩ

Test time range / resolution 1~300s, 1s/step
Grounding Resistance Test
Ground current output range / accuracy AC 5.0~30.0A, ± (3%×setting+5 words)
Ground resistance measurement range / accuracy 10.0 to 600 mΩ, ± (3% × reading+ 5 words)
Grounding resistance alarm setting range

Upper limit:
5~10A:10.0~600mΩ;
11~25A:10.0~300mΩ;
26~30A:10.0~200mΩ;
Lower limit:
0.0~100mΩ

Test time range / resolution 1~60s, 1s/step
Leakage Current Test
Output voltage 1.06 times rated voltage
Leakage type setting Dynamic leakage, static leakage. Default leakage current body network as per IEC 60990 figure 4 built-in, other body network can be customized. If have special requirements, pls specific which body network you prefer, cost may be different
Output voltage measurement range / accuracy AC 50 ~ 280V, ± (3% ×reading + 2 words)
Leakage current measurement range / accuracy 0.05~20.00mA, ± (3% ×reading + 10uA)
Leakage current setting alarm range

Upper limit: 0.05~20.00mA
Lower limit: 0.01~5.00mA

Test time range 1~300s, 1s/step
Power Test
Output voltage 1.0 times rated voltage
Output voltage measurement range / accuracy AC 50~280V, ± (0.5% × reading + 2 words)
Output current measurement range / accuracy AC 0.2~30.00A, ± (0.5% × reading + 2 words)
Active power measurement range / accuracy 30~6000W, ± (0.5% × reading + 5 words)
Power setting alarm range

Upper limit: 3~6000W
Lower limit: 0~6000W

Test time range / resolution 1~300s, 1s/step
General
Interfaces RS232, alarm light interface
Standard Accessories Power cord * 1, 30A test clamp * 1, test box * 1, test power input line * 1, fuse * 1
Optional Accessories Alarm light, foot switch
Equipment Dimensions (MM) W 435W * H 150H* D 550D

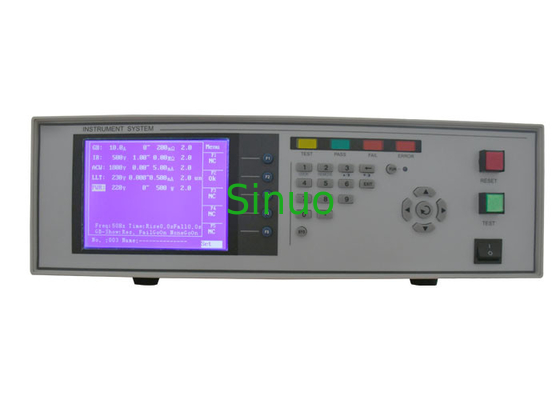

5 In 1 Desktop Electrical Safety Compliance Test Equipment LCD Display PLC Control 0
