IEC60335-2-25 Microwave Ovens Door System Endurance PLC Control Testing Machine
Standards & Clauses:
IEC60335-2-25:2015 ”Household and similar electrical appliances-Safety-Part2-25:Particular requirements for microwave ovens, including combination microwave ovens” clause 18
Samples and Restrictions:
Microwave Ovens, roasters
It is used to verify the door system, including hinges, microwave seals and other associated parts, shall be constructed to withstand wear that may be expected in normal use.

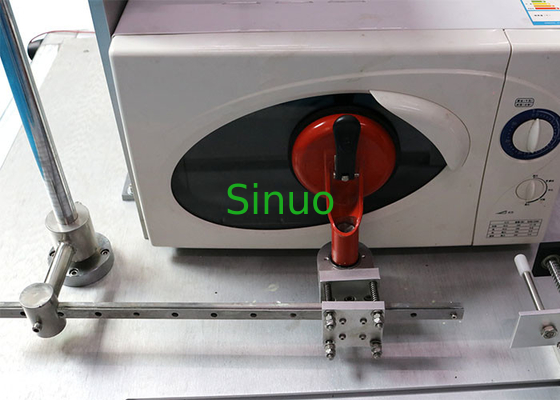

The manipulator is driven by servo motor to reciprocating open and close the door at a certain speed with vacuum suction cup sucking on the door, thus, to verify the reliability of the door system, including hinges, microwave seals and other associated parts.
This equipment adopts PLC plus servo motor control, equipped with full stainless-steel manipulator, vacuum suction cup, and standard 7-inch color touch screen. The test angle and speed can be preset, so as to simulate the manual opening and closing of microwave oven and similar equipment door. The frame is made up of high-grade aluminum alloy profiles. The manipulator is mounted on the pillars of the frame. It can meet the endurance test of microwave oven doors of different sizes and opening methods.
The system can detect whether the sample is energized. When the load is tested, if the sample is not energized during the test, the device will automatically stop, the counter records the number of tests and alarms. This function can be activated as needed.
Equipped with a universal socket, the test equipment can supply rated voltage to test sample, and can detect whether the test sample is energized. During the 50000cycles of operation with the appliance supplied at rated voltage, if the sample is not energized, the operation will be stopped, alarm will be given out.
Equipment dimensions: about: 1000 × 1000 × 800 (mm) W × D × H
Equipment weight: 130kg
Power supply: AC220V±10%/50-60Hz, 6KW or match client's local power supply requirements
Air source: 0.5-0.7MPa compressed air
Use place: atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation.
Single (can test horizontal and vertical microwave ovens)
|Electrical Control Method||PLC intelligent integrated control, 7-inch humanized touch screen operation|
|Drive Mode||Servo motor drive|
|Sample Clamping Method||Vacuum suction cup, pneumatic|
|Door Opened / Closed Speed||0-360°/s, can be preset|
|Door Opened / Closed Dwell Time||0-99.9s, can be preset|
|Rate of Operation||6 cycles /min, door opened / closed time and dwell time are formed to be one cycle time|
|Door Opened / Closed Angle||0-180°, can be preset|
|Test Cycles||0-999999 cycles, can be preset|
|Load Voltage||Voltage 0-250V, adjustable, the current can be displayed, equipped with an 10A socket, which is suitable for samples below 2000W|
|Auxiliary Action Mechanism||Press button for microwave oven door interlock switch|
|Power Supply||Leakage protection, overload and short circuit protection|
|Motor||Overload, short circuit protection|
