Aluminum Vessels and Low Carbon Steel Vessels Φ110mm Φ145mm Φ180mm Φ220mm Φ300mm
  • name
  • name
  • name
  • name

Aluminum Vessels and Low Carbon Steel Vessels Φ110mm Φ145mm Φ180mm Φ220mm Φ300mm

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1115
Aluminum Vessels Material:
6061 Aluminum
Steel Vessels Material:
Low Carbon Steel
Aluminum Vessels Wall Thickness:
2 Mm
Steel Vessels Wall Thickness:
2±0.5 Mm
Aluminum Vessels Function:
Water Simmering Test
Steel Vessels Function:
Cooking Oil Heating Test
Highlight:

ac hipot test equipment

,

glow wire test equipment

Product Description



Aluminum Vessels and Low Carbon Steel Vessels Φ110mm Φ145mm Φ180mm Φ220mm Φ300mm



Standards & Clauses:



IEC60335-2-9:2016 “Household and similar electrical appliances-Safety-Part2-9:Particular requirements for grills, toasters and similar portable cooking appliances” clause 3.1.9.108 and figure 103 and figure 104.

IEC60335-2-6:2018 “Household and similar electrical appliances-Safety-Part2-6:Particular requirements for stationary cooking ranges, hobs, ovens and similar appliances” clause 3.1.9.101 and figure 101 and figure 102.



Samples and Restrictions:



Hotplates, induction hotplates, hob elements, induction hob elements



Application:



Used to simulate the containers that placed on the hotplates, induction hotplates, hob elements, induction hob elements and other containers under normal working conditions



Test Principle:



Aluminum vessels are used to simulate the containers containing water, and the low carbon steel vessels are used to simulate the containers containing cooking oil.



Structure:

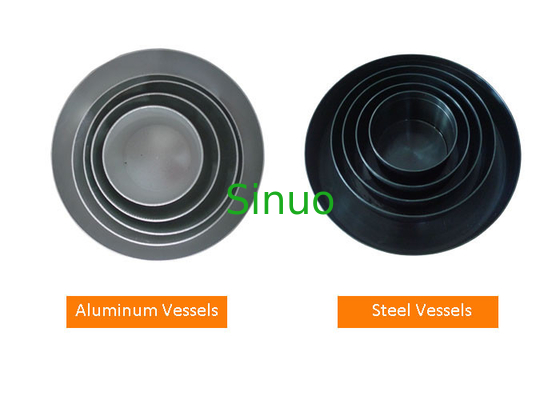

Aluminum vessels: Φ110mm *1 pc, Φ145mm*1 pc, Φ180mm*1 pc, Φ220mm*1 pc, Φ300mm*1 pc

Low carbon steel vessels: Φ110mm *1 pc, Φ145mm*1 pc, Φ180mm*1 pc, Φ220mm*1 pc, Φ300mm*1 pc



Technical Parameters:



Model SNEPAS01A(Aluminum vessels) SNEPAS01B(Low carbon steel vessels)
Material 6061 Aluminum Low carbon steel having a maximum carbon content of 0.08%
Dimensions(mm) abc=Ф110×140×8

dh(height)δ(base thickness)=Ф110×140×(2±0.5)
  abc=Ф145×140×8 dAH=Ф145×140×(3±0.5)
  abc=Ф180×140×9 dAH=Ф180×140×(3±0.5)
  abc=Ф220×120×10 dAH=Ф220×120×(3±0.5)
  abc=Ф300×100×10 dAH=Ф300×100×(5±0.5)
Wall Thickness(mm) 2 2±0.5
Maximum Concavity (mm) 0.05,not to be convex C≦0.006d, not to be convex
Shape & Configuration Flat base, with cover, cylinder Without metallic handles and protrusions, without cover, cylinder
Quantity of Liquid Refer to table 101 Refer to table 101

What's the difference of the low carbon steel vessels as per IEC 60335-2-9: 2016 & IEC 60335-2-6:2018?
Aluminum Vessels and Low Carbon Steel Vessels Φ110mm Φ145mm Φ180mm Φ220mm Φ300mm 0
Aluminum Vessels and Low Carbon Steel Vessels Φ110mm Φ145mm Φ180mm Φ220mm Φ300mm 1
