| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 4 Months |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 Set Per Month |

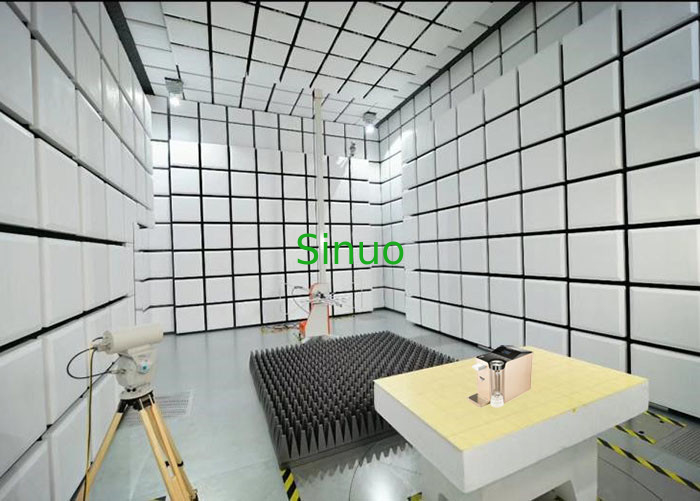

3M Semi Anechoic Chamber 80MHz-6GHz Electromagnetic Compatibility Testing Laboratory
Overview:
The EMC laboratory construction project is designed to meet the electromagnetic compatibility test requirements of electronic products, including a anechoic chamber, a shielding control room, and a matching electromagnetic compatibility test system. After the completion of the test system, the requirements of the certification laboratory can be achieved.
Room Dimensions:
| NO. | Item | Specification (outer size) | QTY | Function |
| 1 | 3M semi anechoic chamber |
9.0×6.0×6.0m(L×W×H) (Adjustment is according to the structural of the building, cost will be different) |
1 | RE/RS test |
| 2 | Shield control room |
4.0×3.0×3.0m(L×W×H) (Adjustment is according to the structural of the building, cost will be different ) |
1 | Control room |
Radio wave darkroom & Shielded room , after installation of shield, filter, waveguide window and other components, within the frequency range of 10kHz～18GHz,according to the lastest edition of EN50147 and GB/T12190 requirements to test ,can meet the below requirements :
| Field source | Frequency (MHz) | Shielding effectiveness |
| Magnetic field | 0.014 | ≥ 70 |
| Magnetic field / Electric field | 0.1 | ≥ 90 |
| Magnetic field / Electric field | 1 | ≥ 100 |
| Electric field | 100 | ≥ 100 |
| Electric field | 450 | ≥ 100 |
| Electric field | 950 | ≥ 100 |
| Electric field | 3000 | ≥ 100 |
| Electric field | 10000 | ≥90 |
| Electric field | 18000 | ≥90 |
System Features:
Sinuo can provide customers with a series of perfect proposals and services for EMC projects, such as standard 3m Half-radio wave darkroom design, construction, site acceptance, equipment integration, installation and commissioning, and technical services. Please consult us for more details.
|
|
