IEC60898-1 Circuit Breaker Tripping Characteristics Test Machine

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood
Delivery Period:	20 Days
Payment Method:	L/C, , T/T, Western Union, MoneyGram
Supply Capacity:	20 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN2501E

Applied Standard:

IEC60898-1

Applied Clause:

9.8, 9.9 And 9.10

Test Station:

Customizable

Sample Specification:

2.5~125A

Output AC Current:

1~320A

Output AC Voltage:

Highlight:

IEC 61000-4-12 EMC Test Equipment

4KV EMC Test Equipment

Ringing Wave Signal Test Generator

Product Description

IEC60898-1 Circuit Breaker Tripping Characteristics Test Machine

Product overview:

The test equipment is designed and manufactured according to the standard requirements of

IEC60898-1 clause 9.8, 9.9 and 9.10, IEC60947-1 clause 7.2.1 and etc.

It is made to verify that the circuit-breaker complies with the requirements, which apply 1.13 times, 1.45 times, and 2.55 times the rated current to test to see if it trips within the specified time. The test equipment can also test the instantaneous tripping characteristics of the circuit breaker, that is, apply 3 to 20 times the rated current for the test whether it jumps out of the time. Also meets standard 28-day test and temperature-rise test requirements.

It is suitable for online testing of molded case circuit breakers and miniature circuit breakers before leaving the factory. It is a necessary equipment for electrical performance testing of circuit breaker manufacturers.

Technical parameters:

Project specifications	Parameter content
Applied standard	IEC 60898-1
Clause	9.9, 9.10
Control method	18.5-inch touch-screen computer operation
Program language	English
Test items	1. Delay test of miniature circuit breaker 1.13+1.45In; 2.55In 2. Instantaneous test of miniature circuit breaker 3-20In 3. Temperature rise test of miniature circuit breaker 4. 28-day test of miniature circuit breaker
Test station	1 station
Input power	AC380V 50Hz 40kVA
Delay trip parameters
Output AC current	1~320A
Output AC voltage	1-5V
Output current channel	1-channel, multi-P circuit breaker contacts are connected in series to test several switches at the same time (max. 3 pcs.)
Test miniature circuit breaker products	2.5~125A
Current output waveform	Sine wave (correction equipment current waveform distortion is not more than 5%, system error is not more than 3%)
Current control method	Automatic adjustment, the current is set on the touch screen
Current accuracy	Level 0.5
Voltage accuracy	Level 0.5
Transformer ratio	400/5A
Test time	1~999999s
Current	After 1.13 times of current is applied, it quickly and automatically rises to 1.45 times of current in 5 seconds
Fixture	Adopt the terminal method, delayed: one station, instantaneous: one station.
Instantaneous trip test
Fixture	Adopt the terminal method, delayed: three stations, instantaneous: one station.
Output current	AC3A～2500A
Instantaneous tripping currents	3-20 In
Output voltage	1-5V
Output current channels	1 channel
Current accuracy	0.5 level
Resolution	1A
Instantaneous test time	≤0.2s
Action time upper limit setting	1~200ms
Action time lower limit setting	1~200ms
Test station	1 station
Timing time	1~9999ms
Protective function:	Short circuit protection, overload protection, leakage protection
Temperature rise test	Under normal working conditions, when the circuit breaker is tested according to the specified conditions. The circuit breaker should not be damaged to affect its function or safety of use.
Temperature measurement channel	16 channels, temperature resolution: 0.1 degrees, (1 channels measure the ambient temperature inside the chamber)
Thermocouple	T type or K type
Temperature curve	Computer display with temperature data logging table
Temperature measurement range	0~200 degrees
28-day test
Test program	The sample is supplied with AC 30V and rated current, the power-on time is 21 hours, the power-off time is 3 hours, and the cycle is 28 times. The terminal temperature is measured during the last power-on cycle, and compared with the initial measured temperature, the temperature rise value is compared with the standard requirements. After the temperature rise measurement, the current rises to the tripping current value in 5 seconds, and the circuit breaker should trip within the given/preset time.
Output voltage	More than AC 30V
Output AC current	AC 3-125A
Power on time	Power-on time 0-99h, can be preset
Power off time	0-99h can be preset
Number of cycles	0-9999 times can be preset
Tripping time	recordable
Tripping current	3~200A
Evaluation of results	1. Whether the circuit breaker tripped during the test or not. If it tripped, it failed; if it did not trip, it passed. 2. Temperature rise comparison, if it exceeds the standard value by 15K, it is defective; if it does not exceed the standard value, it is acceptable. 3. After the current rises to the tripping current, if it trips within the given/preset time, it is acceptable; if it exceeds the given/preset time or does not trip, it is defective.
Configuration
Connecting cable	Wires for temperature rise test: 1, 1.5, 2, 2.5, 4, 6 and 10, each specification has a length of 1 meter, and match 5 PCS for each specification; 16, 25, 35, and 50, each specification has a length of 2 meter, and match 5 PCS for each specification
Thermocouple	Type K, 16pcs, 2m length each pcs
Temperature control in chambers	1 pcs, for heating the chamber to (RT+5~50°C) heating the chamber to (RT+5~50°C) 1 heating elements in each chamber. Control system for setting and maintaining temperature for each chamber. 1 regulators are installed on the control panel.
Hardware	Computer display greater than 18.5 in, with WIFI
Threading hole	Each workstation is equipped with threading holes for easy connection with instruments outside the box
Software	Editable program segments, capable of forming curves, generating reports, and printable

Equipment characteristics:

The equipment chamber is welded with high-quality steel, the plate is coated and sealed, and the surface is anti-static, anti-rust, and anti-corrosion coated. The upper part of the equipment is equipped with a panel, a power switch, and a variety of wire ends (for delay tripping test). The equipment is reasonably designed and used with the advantages of convenience, simple operation, reliable performance and beautiful appearance.

According to the delayed tripping of standard IEC60898-1 clause 9.10.2.1 or 9.10.2.2, the chambers in SN2501C can be tested independently at the same time. According to the instantaneous test of IEC60898-1 clause 9.10.3.2-9.10.3.4, it can only be tested in different time.

Test type	Combination 1	Combination 2	Combination 3	Combination 3
Delay tripping test	√
Instantaneous tripping test		√
Temperature rise			√	√
28-day test procedure				√

Chamber is equipped with a heating device, with a temperature control range of RT+5~50°C, so that the model samples in the chamber can be used at normal ambient temperatures, and includes a three-way ambient temperature monitoring function.

The software must allow the execution of any test program to be terminated at any time without having to wait for the standard procedure to complete, retaining the results obtained at the time of termination.

Test principle:

This test equipment adopts the principle of low voltage and high current output, uses the large current in the machine to isolate the output current of the transformer, sets the current size through the touch screen, and the constant current source adjusts the size of the output current of the transformer, which has the function of automatically stabilizing the current. It has an option of setting the test time using the touch screen and comparing the test trip time to evaluate the quality of the circuit breaker.

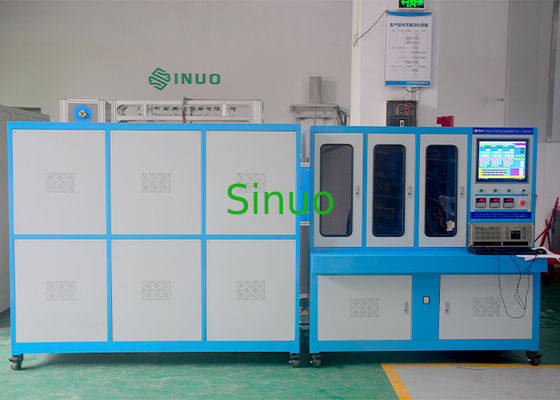

IEC60898-1 Circuit Breaker Tripping Characteristics Test Machine 0
