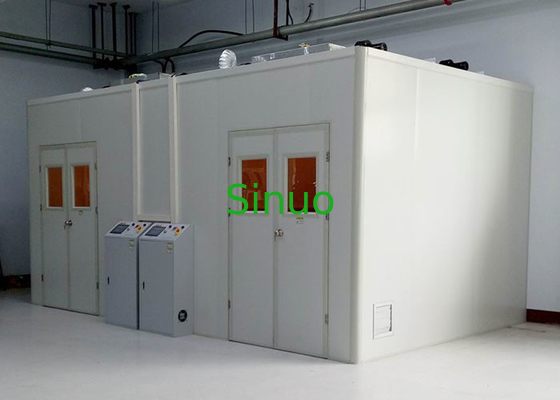

Thermal Durability Test Led Testing Equipment Large Luminaires Temperature Aging Room

Thermal Durability Test Led Testing Equipment Large Luminaires Temperature Aging Room

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 2 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN998
Temperature Range:
20℃~+60℃
Temperature Fluctuation:
±1°C Or Less
Temperature Uniformity:
±2℃
Test Time:
0~99999h
Test Rack:
2 Layers
Test Specimen:
Ceiling Lamps, Wall Lamps, Recessed Lamps, Table Lamps, Street Lamps And Etc.
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
2 Month
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
20 Sets Per Month
Highlight:

torque testing machine

,

luminaire testing equipment

Product Description

Luminaires Aging Test Room LED Light Thermal Durability Testing Equipment



Overview:



The luminaire durability aging test room meets the requirements of Section 12.3 of the Chapter 12 “Endurance Test” and Annex K “Temperature Measurement” of IEC60598-1:2014.



This testing system has excellent cost performance, long-term operating temperature stability, high precision test data, good test results, highly recommended by lighting manufacturers, quality and technology supervision and inspection institutions, third-party testing laboratories and etc.



Features:



The durability aging test room for luminaires can control the ambient temperature during the testing, adopts the method of circulating heating or cooling indoor air, and with advanced PID temperature control technology to stabilize the within the set range. Balanced temperature control system (BTC) + special forced air duct air circulation system, the SSR is controlled by P.I.D., ensure the heating amount of the system is equal to the heat loss amount, so it can be used stably for a long time. The environmental test chamber consists of a test chamber and a refrigeration-heating unit.



Technical Parameters:



Chamber Inside Dimensions

3000 (length) mm × 2000 (width) mm × 2500 (height) mm

(can be customized)

Temperature Range 20℃~+60℃  (can be customized)
Temperature Fluctuation ±1°C or less
Temperature Uniformity

±2℃

(The test rack of the aging room is arranged with at least four temperature detectors on the same plane, and the temperature is required to be controlled at ±2 °C of the set value, and the test rack has two layers)

Test Time 0~99999h, can be preset
Door Single door opening, the door size is 1000×2000mm. A 50mm thick steel polyurethane plate is used. The inside of the chamber is made of stainless steel plates, the exterior of the chamber is made of colored steel plates, the surface is spray-treated, the inner insulation layer of the interlayer is made of flame-resistant polyurethane, and integrated foaming. The door seal is double-layer silicone rubber or neoprene rubber, there is a 400×400mm observation window, the observation window is double-layered hollow glass, the edge is inlaid with stainless steel frame, and the frame and glass are sealed with silicone rubber. The closed door adopts a structure that can be opened both inside and outside;
Test Power Can meet the total power demand of aging lamps 5KW



Thermal Durability Test Led Testing Equipment Large Luminaires Temperature Aging Room 0



Lamp Constant Temperature Durability Aging Room (Large) - Structure and Heat Cycle Diagram



Structure and Material:



a) Inner chamber material: clean and thick flame-retardant color steel plate (the inner wall needs to be painted black)

b) Outer chamber material: sprayed color steel plate

c) Insulation material: thermal mineral wool

d) Heater: good heat dissipation

e) Refrigeration system: France TECUMSEH brand refrigeration compressor

f) Provide high temperature / heat / corrosion resistant black floor



Luminaires Test Installation Workbench/Bracket:

Thermal Durability Test Led Testing Equipment Large Luminaires Temperature Aging Room 1

Casters are mounted on the bottom of the luminaire test installation workbench. It is easy for installation, and can meet the installation requirements of fixed lamps (ceiling lamps, wall lamps), recessed lamps, table lamps, street lamps and other lamps. There are 2 layers on the installation workbench, overall size is about 1800mm * 1000mm * 1400 mm (length x width x height) (the first layer is about 400mm high, the second layer is about 1400mm high), each layer is equipped with about 10 power sockets. Each layer can be individually powered for 24 hours and 3 hours for power off.
