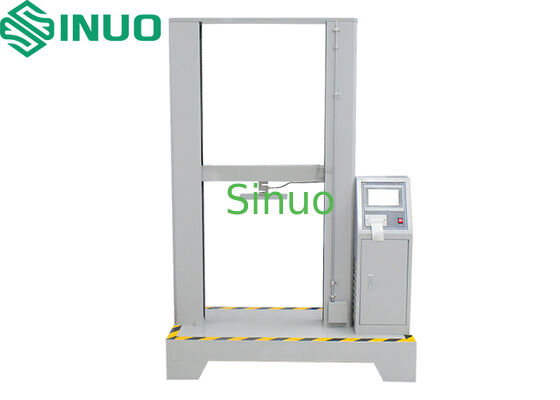

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester
  • name

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2910
Test Stations:
Single Station
Control Mode:
PLC Intelligent Control
Specimen Size:
Length 200 ± 5 Mm, Placed On Base Plate
Drive Mode:
Motor Drive
Force Range:
10–4894 N
Test Speed:
10–250 Mm/min
Test Stroke:
0–600 Mm
Compression Block:
(50 ± 0.5) × 50 × 50 Mm
Product Description

 IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester



Product information:


Applicable Standards: IEC 61386-1:2017 <Conduit systems for cable management – Part 1: General requirements> Clause 10.2



Specimens & Scope: Suitable for metal, non-metallic and composite conduits used to protect and manage insulated wires and/or cables for electrical or communication systems up to AC 1000 V and/or DC 1500 V.



Test Purpose: To evaluate whether the mechanical performance of conduits after compression meets the standard requirements.



Test Principle:

A PLC control system drives the motor to apply force via a sensor. The sensor is connected to a steel block of (50 ± 0.5) × 50 mm.

The specified force is applied to the specimen within (30 ± 3) s and maintained for (60 ± 2) s. The outer diameter of the specimen is measured during loading, and the deformation shall not exceed 25% of the original outer diameter.

After unloading, the device automatically returns. After (60 ± 2) s, the outer diameter is measured again, and the deformation shall not exceed 10% of the original outer diameter.

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester 0

Technical parameters:


No.

Item

parameters

1

Power supply

AC 220 V ±10%, 50–60 Hz

2

Test stations

Single station

3

Control mode

PLC intelligent control, touch screen operation

4

Specimen size

Length 200 ± 5 mm, placed on base plate

5

Drive mode

Drive mode

6

Force range

10–4894 N, Resolution 0.1 N, Accuracy class 2.5, compliant with the force values specified in Table 4 of the standard.

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester 1

7

Stroke

0–600 mm

8

Test speed

10–250 mm/min, adjustable

9

Compression block

(50 ± 0.5) × 50 × 50 mm (L × W × H), bottom edges chamfered R1

10

Base plate

Steel plate ≥ 10 mm, size 500 × 500 mm

11

Constant force time

0–999.9 s, presettable

12

Test procedure

(30 ± 3) s loading → (60 ± 2) s constant force → release

13

Conduit diameter measurement

Manual

14

Dimensions

approx. 1000 × 600 × 1350 mm (W × H × D)

15

Weight

150 kg

16

Operating Environment

temperature: 23 ± 2 °C
Humidity: 30%–90% RH
