IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment
  • name
  • name
  • name
  • name

IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNQC1015-1000L
Inner Size:
1000 × 1000 × 1000 Mm
Chamber Liner Material:
2 Mm 304 Stainless Steel
Heating Range:
Room Temperature ~ 20°C
Cooling Range:
Room Temperature ~ 20°C
Constant Temperature Range:
Room Temperature ~ 20°C
Temperature Control:
Reaches Set Value Automatically
Max. Power:
5 KW
Temperature Error:
±2°C
Product Description

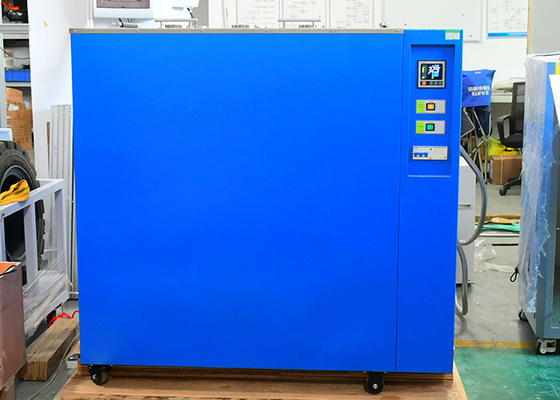

IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment





Product Information​:



The Constant Water Bath is designed in compliance with IEC 62196-1:2022 clause 30, providing a stable and uniform temperature environment for testing EV plugs, connectors, and electrical components. It adopts a stainless steel inner liner and advanced digital temperature control system, ensuring precise and reliable temperature regulation. An integrated water stirring mechanism guarantees uniform temperature distribution throughout the bath.

This equipment is essential for low-voltage electrical appliance manufacturers, testing laboratories, certification institutes, and research facilities that need accurate thermal environment simulation for product verification.



IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment 0





Technical Parameters​:



Item Specification
Inner Size 1000 × 1000 × 1000 mm
Input Voltage Three-phase 380V, 50/60Hz
Max. Power 5 KW
Constant Temperature Range Room temperature ~ 20°C
Heating Range Room temperature ~ 20°C
Cooling Range Room temperature ~ 20°C
Temperature Control Automatic, reaches set value automatically
Temperature Error ±2°C
Chamber Liner Material 2 mm 304 stainless steel
Temperature Uniformity Bottom water stirring for even distribution




Key Features & Benefits:


✔ IEC 62196-1:2022 compliant for EV plug and connector testing

✔ Digital temperature control with automatic stabilization

✔ Uniform water circulation ensures even temperature distribution

✔ Durable 2mm 304 stainless steel liner for long service life

✔ High stability with ±2°C temperature error tolerance

✔ Suitable for electrical appliance testing, R&D labs, and certification institutes





Applications:



EV plug and connector reliability testing

Low-voltage electrical appliance temperature endurance tests

Laboratory research on electrical components

Certification and quality assurance testing



IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment 1



IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment 2



IEC 62196-1 Constant Water Bath 1000L Stainless Steel Temperature Control Test Equipment 3
