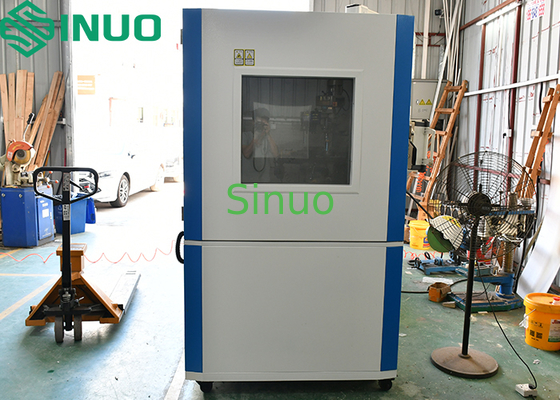

Sand And Dust Test Chamber Simulate Sandy Environments IEC60529 Figure 2

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood Case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate(Cost Additional )

Model Number

SN441-1000L

Fine Dust:

≤75 μm

Coarse Dust:

≤150 μm

Dust Baking Range:

RT+10℃-60℃

Talcum Powder Dosage:

2–5 Kg/m³

Air Flow Velocity:

≤2 M/s

Air Flow Meter:

1–20 L/min

Highlight:

sand and dust test chamber

dust test chamber IEC60529

environmental test chamber for sand

Product Description

Sand And Dust Test Chamber Simulate Sandy Environments IEC60529 Figure 2

This equipment is used to test the resistance of electrical and electronic products, automotive and motorcycle parts, and seals to sand and dust ingress. It simulates natural and artificially induced sandy environments to evaluate product performance during use, storage, and transportation, helping to identify potential damage from airborne particles.

Compliant standards: IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

Technical Parameters

Dust Conditions

Baking dust temperature range: RT+10℃ ～ 60℃
Fine dust: ≤75 μm
Coarse dust: ≤150 μm
Dust concentration: 2 kg/m³
Talcum powder dosage: 2-5 kg/m³
Dust blowing method: From top to bottom

Air Flow & Pressure

Air flow velocity: ≤2 m/s
Air flow meter: 1-20 L/min
Negative pressure difference range: -10 ~ 0 kPa (adjustable)
Air pressure can be freely set at -2 kPa, -5 kPa, -10 kPa

Filtration & Mesh

Metal mesh diameter: 50 μm
Nominal spacing between lines: 75 μm or ≤150 μm

Timing Controls (adjustable)

Shock time: 1 s - 99 h
Test time: 1 s - 99 h
Dust blowing control cycle: 1 s - 99 h
Vacuum time: 1 s - 99 h

Controller Functions

Adjustable dust blowing time (stop / blowing)
Cycle: Arbitrary adjustable
Preset test time: 0.1-9999.9 h (adjustable)
Power control: On- Off-On

Mechanical & Electrical

Circulation fan: Closed alloy low-noise motor, multi-blade centrifugal fan
Load bearing: 20 kg
Observation window: 1 PC
Lighting lamp: 1 PC
Sample power socket: Dust-proof socket AC220V / 16A
Control system: PLC controller + touch screen
Vacuum system: Pressure regulating valve, nozzle, pressure regulating set, connecting pipe, vacuum pump
Dust heating system: Stainless steel mica sheet heating sleeve

Construction

Inner chamber material: SUS201 stainless steel mirror panel
Outer chamber material: Electrostatic spray-coated A3 iron plate
Structure includes: Test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen, etc.

Power & Environment

Power supply: AC380V, three-phase five-wire, 50 Hz
Requires separate 32A air switch with terminal blocks
Power cord: ≥4 mm²
Power consumption: 3 kW (no load)
Environmental conditions: Temperature (23±5)℃; relative humidity 25%-70% RH; atmospheric pressure 86-106 kPa

Safety Protection

Phase sequence protection, Leakage protection

Main Accessories List

No.	Name	Brand
1	Touch screen controller	MCGS
2	PLC	XINJE
3	AC contactor	CHINT
4	Intermediate relay	CHINT
5	Phase sequence protector	CHINT
6	Illuminated button	ONPOW
7	Emergency stop	ONPOW
8	Alarm	ONPOW
9	Circuit breaker	CHINT
10	Flow meter	Made in China
11	Mica heating plate	Customize
12	Digital pressure gauge	SMC
13	Transfer switch	GELEI
14	Vortex air pump	JIUZHOU
15	Vibration motor	RPM300
16	Smart thermostat	DELTA
17	K2M probe	KERUNMEI
18	Vacuum mercury	FEIYUE
19	Dust bag	Made in China
20	Dustproof socket	Made in China
21	Dust blowing pipe	Customize
