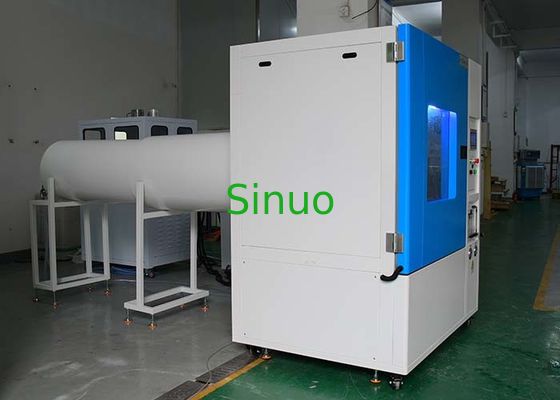

IEC 60529 All in One Integrated Waterproof Test Chamber for IPX1~IPX6 Tests 1000L

IEC 60529 All in One Integrated Waterproof Test Chamber for IPX1~IPX6 Tests 1000L

Product Overview

The IPX1~IPX6 Water Ingress Test Chamber is a highly reliable and versatile solution designed to evaluate the waterproof performance of a wide range of electrical and electronic products. From gentle dripping to powerful water jets, this all-in-one system supports comprehensive testing from IPX1 to IPX6, strictly following IEC60529:1989 +A1:1999 +A2:2013 standards (including Figures 4 and 6).

Whether you're testing outdoor lighting, home appliances, automotive components, or electrical enclosures, this chamber ensures that your products withstand real-world rain, splash, and jet water exposure. It helps you detect design flaws early, minimize risks, and improve product reliability before market release.

Features:
✅ Covers IPX1 to IPX6 in one chamber for full waterproof compliance testing
✅ Built to IEC60529 standard, ensuring precise and repeatable test results
✅ Ideal for multiple industries: electronics, automotive, lighting, appliances
✅ Supports R&D, design validation, and factory inspections
✅ Reduces failure risks like corrosion, short circuits, and deformation
✅ Engineered for durability and ease of use in lab and production environments

Perfect for manufacturers, testing labs, and quality assurance teams, this chamber is an essential tool for improving product durability and safety in harsh environments.

✅ IPX56: Configured a spray nozzle according to the specifications of IEC60529 figure 6 (as shown below):

✅ Turntable drive: use high-quality stepper motor, can automatically control the positive and negative rotation (forward and reverse: suitable for the sample power-on test and to prevent cable winding).

✅ The test time can be set on the touch screen. The setting range is 0-999min (adjustable).

✅ The core control system adopts 7-inch touch screen + PLC. The electrical components adopt imported brands such as Omron. The wiring process conforms to the requirements of national standards. The layout of the electric board is reasonable, the wiring is firm and the marking is clear.

✅ There is configured with a waterproof socket inside the chamber for power on the sample.

✅ With safety protections of leakage protection, water shortage protection, short circuit protection.

Technical Parameters:

Technical Parameters	Basic Parameters
	Inner Chamber Size	L1000*W1000*H1000mm
	Outer Chamber Size	L1480*W3800*H1800mm
	Turntable Diameter	￠400mm
	Turntable Maximum Load Bearing	10KG
	Turntable Speed	1-5r/min (adjustable)
	Turntable Rotation Method	Always positive / positive and negative alternate
	Flow Adjustment Method	Manually adjust flow by adjusting flow meter on the panel
	Test Time	0-999 min
	Power supply for sample	Configured with a waterproof socket inside the chamber for client to power on sample during test
	Equipment dimensions	Approx.2770mm(L)*1330mm(W)*1750mm(H)
	Total Weight	Approx. 350kg
	Required site place	3.2m(L)*2m(W)*2m(H)
	IPX12 Dripping Testing Parameters
	Drip area	600*600mm
	IPX12 nozzle size	Diameter 0.4mm
	Distance between drip holes	20*20 mm
	Water flow	IPX1=1mm/min; IPX2=3mm/min
	Drip board lifting method	Not lifting (fixed)
	IPX34 Oscillating Tubes Parameters
	Oscillation Tube	R200 mm and R400mm
	Distance between Nozzle Sample	Within 200mm
	Spray Aperture Spacing	50 mm
	Oscillating Tube Swing Angle	±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
	Angle Between Two Holes	120°(IP3) 180°(IP4)
	Needle Hole	φ0 .4 mm
	Oscillating Speed	IPX3: 15times/min; IPX4: 5times/min
	Water Flow of Each Hole	0.07 L/min +5%
	Spray Pressure	80-150Kpa
	IPX34 Spray Nozzle Parameters
	Parameters of Spray Nozzle	Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass.
	Water Flow	10L/min±5% adjustable by flow meter (flow meter is not included in this item, should be prepared by user)
	Pressure	50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
	Moving Shield	Made of aluminum, can be detachable Note: the aluminum moving shield is easy to deform, pay attention during use
	IPX56 Jet Nozzle Parameters
	IPX5 Nozzle Jet Aperture	6.3mm
	IPX6 Nozzle Jet Aperture	12.5mm
	IPX5Jet Flow	12.5±0.625
	IPX6 Jet Flow	100±5L/min
	Water Pressure (Mpa)	Adjusted according to the specified water flow
	Jet Distance	2.5M (nozzle away from the center of the turntable)
	Nozzle Fixed Method	Mechanical fixing
	Electrical Parameters
	Power Supply for Equipment	380V, 50Hz
	Equipment Power	3.0KW
	Safety Protection Function	Leakage protection, water shortage protection, short circuit protection
Conditions of Use	The following conditions are guaranteed by the user and the corresponding connection is completed.
Use of Space	The ground is level, the drainage is smooth, floor and wall are waterproofing, Ground bearing capacity is not less than 200kg/㎡ Well ventilated No strong vibration around the device No strong electromagnetic field around the device No flammable, explosive, corrosive substances and dust around the equipment Appropriate use and maintenance space is left around the equipment: Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1400mm
Environmental Conditions	Temperature:5℃～35℃ Relative humidity: ≤85% Air pressure:86kPa～106kPa
Power Supply Conditions
Voltage, Frequency	AC380V±10%; 50Hz±10%; three-phase four-wire + protective ground wire
Power	3.0kW
Protective Grounding Resistance	Grounding resistance of protective grounding wire is less than 4Ω
Power Switch	1. The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and the switch must be used independently for the device. 2. It is forbidden to use the knife switch or power socket. 3. The leakage protection air switch is not more than 2 meters away from the equipment.
Water Source	1. The user is required to configure the water source for the equipment at the installation site, the water pressure is not less than 0.2Mpa, and the 4-point faucet is installed. 2. The position of the faucet is no more than 2 meters away from the equipment.
