| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10 Sets Per Month |

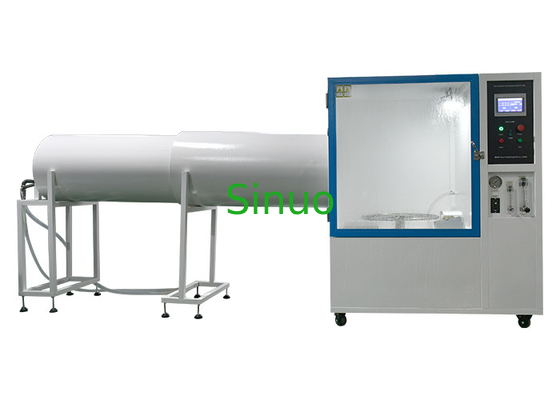

IEC60529 IPX3~6 Comprehensive Waterproof Testing Equipment With PLC+Touch Screen
Overview:
Application Background: Damage to products and materials caused by natural water (rain, sea water, river water, etc.) results in incalculable economic losses every year. The damage caused mainly includes corrosion, discolouration, deformation, loss of strength, swelling, mould, etc. Electrical products in particular are susceptible to fire due to short circuits caused by rainwater. Therefore, water testing of enclosure protection for specific products or materials is an essential and critical process.
General application areas: outdoor lighting, household appliances, automotive parts and other electrical and electronic products.
Equipment Function: The main function of the equipment is to test the physical properties and other related properties of electrical and electronic products, lamps, electric cabinets, electrical components, automobiles, motorbikes and their parts under simulated climatic conditions. At the end of the test, through the verification to determine whether the product performance meets the requirements, to facilitate product design, improvement, verification and factory inspection.
Standard: IEC60529:1989 +A1:1999 +A2:2013 <Protection class provided by the enclosure (IP code) > IPX4 and IPX5 tests, Fig. 5 and Fig. 6.
Technical parameters:
|
Technical Parameters |
Basic Parameters | |
| Inner Chamber Size | L1000*W1000*H1000mm | |
| Outer Chamber Size | L1480*W3800*H1800mm | |
| Turntable Diameter | ￠400mm | |
| Turntable Maximum Load Bearing | 30KG | |
| Turntable Speed | 1 -5r/min (adjustable) | |
| Turntable Rotation Method | Always positive / positive and negative alternate | |
| Flow Adjustment Method | Manually adjust flow with adjustable panel flow meter | |
| Test Time | 0-999 min | |
| Total Wright | 350kg | |
| IPX34 Spray Nozzle Parameters | ||
| Parameters of Spray Nozzle | Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole in the centre, 2 inner ring 12 holes, spacing 30 °, 4 outer ring 24 holes, spacing 15 °, a total of 121 Ф0.5mm holes, brass material. | |
| Water Flow | 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional | |
| Pressure | 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa | |
| Moving Shield | Made of aluminum, can be detachable | |
| Spray Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| IPX56 Jet Nozzle Parameters | ||
| IPX5 Nozzle Jet Aperture | 6.3mm | |
| IPX6 Nozzle Jet Aperture | 12.5mm | |
| IPX5Jet Flow | 12.5±0.625 | |
| IPX6 Jet Flow | 100±5L/min | |
| Water Pressure (Mpa) | Adjusted according to the specified water flow | |
| Jet Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| Electrical Parameters | ||
| Power Supply for Equipment | 380V, 50Hz | |
| Equipment Power | 3.0KW | |
| Safety Protection Function | Leakage protection, water shortage protection, short circuit protection | |
| Conditions of Use | The following conditions are guaranteed by the user and the corresponding connection is completed. | |
| Use of Space |
The floor is level, with smooth drainage, and the floor and walls are waterproofed, The load-bearing capacity of the floor is not less than 200kg/square metre. Good ventilation No strong vibration around the equipment No strong electromagnetic field around the equipment No flammable, explosive, corrosive substances and dust around the equipment. Appropriate space for use and maintenance around the equipment: Rear side, left and right side, top of the equipment: 800 mm; Front side of the equipment: 1400 mm: 1400 mm. |
|
| Environmental Conditions |
Temperature:5℃～35℃ Relative humidity: ≤85% Air pressure:86kPa～106kPa |
|
|
Voltage, Frequency |
AC380V±10%; 50Hz±10%; three-phase four-wire + protective ground wire | |
|
Power |
3.0kW | |
|
Protective Grounding Resistance |
Grounding resistance of protective grounding wire is less than 4Ω | |
|
Power Switch |
1. The user must configure the equipment with the appropriate capacity leakage protection air switch at the installation site, and the switch must be used independently for the equipment. 2. The use of knife switches or power sockets is strictly prohibited. 3. 3. The leakage protection air switch should not be more than 2 metres away from the equipment. |
|
|
Water Source |
1. Require the user to configure a water source for the equipment at the installation site, with a water pressure of not less than 0.2Mpa, and install a 4-point tap. 2. 2. The tap position is not more than 2 metres away from the equipment. |
|
Equipment Features:
1. Suitable for products IPX4 and IPX5 (actually can reach IPX3, IPX4, IPX5, IPX6) waterproof level test. 2.
2. The shell is made of domestic high-quality steel plate, surface spraying baking paint, beautiful and durable.
3. The inner liner and turntable are made of SUS304# stainless steel plate, to ensure that the long-term use of rust.
4.The door is equipped with a transparent observation window (tempered glass material), the chamber is equipped with LED lighting, easy for the operator to observe the internal test situation.
5. IPX34: Configuration of spray nozzle according to IEC60529 Fig. 5 (as shown below)
6. IPX56: Configured a spray nozzle according to the specifications of IEC60529 figure 6 (as shown below):
7. Rotary disc drive: using high-quality stepping motor, can automatically control the forward and reverse rotation (forward and reverse: suitable for sample power-on test and prevent cable entanglement).
8. Test time can be set on the touch screen. The setting range is 0-999min (adjustable). 9.
9. the core control system adopts 7-inch touch screen + PLC. electrical components using Omron and other imported brands. The wiring process meets the requirements of national standards. Reasonable layout of the electrical board, solid wiring, clear marking.
