IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester
  • name
  • name
  • name
  • name

IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN443-1000L
Internal Chamber Size:
1000 × 1000 × 1000 Mm
External Dimensions:
1500 × 1260 × 2000 Mm
Turntable Diameter:
600 Mm
Max Sample Load:
Approx. 20 Kg
Turntable Speed:
1–5 Rpm, Adjustable
Drip Hole Diameter:
Ø0.4 Mm
Dripping Area:
800 × 800 Mm
Dripping Height:
200 Mm
Product Description



IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester


Product Information:

This IPX1 / IPX2 Water Dripping Test Apparatus is designed and manufactured in accordance with IEC 60529, providing reliable verification of enclosure protection against vertically dripping water.
The equipment is widely used for waterproof performance evaluation of electrical and electronic devices, luminaires, household appliances, control cabinets, and automotive components.
By simulating controlled vertical dripping and inclined dripping conditions, the system enables manufacturers and laboratories to confirm whether products meet the required ingress protection levels under water drop exposure.


Key Features:

Compliance with IEC 60529
Fully supports IPX1 and IPX2 waterproof test requirements, including vertical dripping and 15° inclined dripping conditions.
Large Test Volume
Test chamber with an internal size of 1000 × 1000 × 1000 mm, suitable for a wide range of product dimensions.
Uniform Dripping System
Precision drip tray with Ø0.4 mm water holes and 20 mm spacing, ensuring even and consistent water distribution.
Adjustable Rotating Turntable
Equipped with a 600 mm diameter turntable, speed adjustable from 1 to 5 rpm, supporting stable sample exposure during testing.
Inclination Capability for IPX2
Turntable can be tilted up to 15 degrees to accurately simulate IPX2 dripping conditions.
Durable Stainless Steel Construction
All water-contact components are made of SUS304 stainless steel, offering excellent corrosion resistance and long service life.
Intuitive Control System
LCD touch controller allows easy setting of test duration, rotation speed, and operating parameters.
Water Protection & Safety Design
Integrated filtration system prevents nozzle blockage; equipped with leakage protection, overload protection, and water shortage alarm.


Technical Parameters:


Item Specification
Model SN443-1000L
Internal Chamber Size 1000 × 1000 × 1000 mm
External Dimensions Approx. 1500 × 1260 × 2000 mm
Turntable Diameter 600 mm
Max Sample Load Approx. 20 kg
Turntable Speed 1–5 rpm, adjustable
Drip Hole Diameter Ø0.4 mm
Hole Spacing 20 mm
Dripping Area 800 × 800 mm
Dripping Height 200 mm
Control Method LCD touch screen
Test Time Range 1–999,999 minutes
Power Supply AC 220V, 50Hz, single phase
Power Consumption Approx. 3 kW
Protection Functions Leakage, short circuit, water shortage, over-temperature
Operating Environment Temperature: 10–35 °C / Humidity: ≤85% RH
Specifications can be customized according to customer requirements.



Applications:

Waterproof performance testing of electronic enclosures
Household appliance ingress protection evaluation
Lighting and luminaire waterproof testing
Automotive and motorcycle component inspection
R&D laboratories and quality control departments

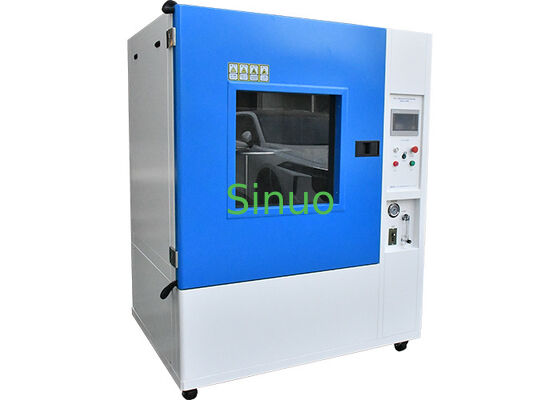

IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester 0

IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester 1

IEC 60529 IPX1 / IPX2 Drip Test Chamber 1000L Vertical Water Dripping Waterproof Tester 2
