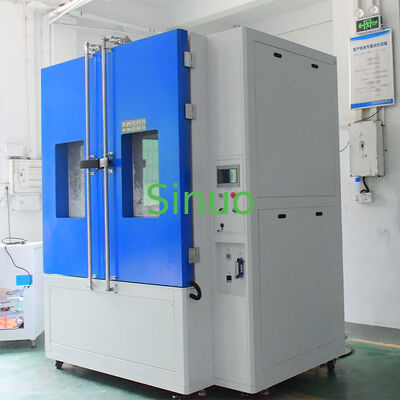

IEC60529 IPX5 IP6X Sand Dust Resistance Test Chamber For Big Sample

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 5 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN441-2250L
Max. Sample Size:
1500*1000*1500mm(W*D*H)
Temperature Range:
RT+10℃～60℃
Vacuum Time:
1s～99h (adjustable)
Applied Standard:
IEC60529 IPX5 IP6X
Air Flow Rate:
No More Than 2m/s
Air Flow Meter:
1-20L/M
Dust Concentration:
2kg/m³
Metal Mesh Diameter:
50um
Highlight:

IEC60529 Sand Dust Resistance Test Chamber

,

IP6X Sand Dust Resistance Test Chamber

Product Description
IEC60529 IPX5 IP6X Sand Dust Resistance Test Chamber For Big Sample
Compliance Certification

Fully compliant with international standards including IEC 60529 IPX5 and IP6X ingress protection ratings.

Application Scope

This sand & dust test system evaluates the sealing integrity of electrical & electronic goods, auto & motorcycle components, and rubber seals against particulate infiltration under dusty and sandy working conditions.

It verifies product reliability during usage, warehousing and shipment in dusty ambient settings, and assesses potential damage inflicted by airborne dust particles on electric devices.

The setup accurately replicates natural dusty outdoor surroundings or man-made turbulent dust flow generated by vehicle travelling and other disturbances.

Design Concept

The chamber adopts a tapered conical hopper fitted with a bottom dust collecting outlet. A high-pressure turbine circulation fan is mounted at the dust extraction opening to draw dust upwards to the top of the test inner cabinet. Dust then free-falls vertically downwards inside the chamber, enabling continuous closed-loop dust circulation for cyclic testing.

For Big Sample

Inner chamber size: 1500*1000*1500mm

IEC60529 IPX5 IP6X Sand Dust Resistance Test Chamber For Big Sample

Supports Vacuum Function

This equipment has the functions of vacuum pumping and supplying power to the sample.

IEC60529 IPX5 IP6X Sand Dust Resistance Test Chamber For Big Sample

Technical Specifications
Parameter Specification
Inner chamber size 1500*1000*1500mm (W*D*H)
Outer chamber size Approx. 2000*1800*2300mm (W*D*H)
Dust baking temperature range RT+10℃～60℃
Fine dust Below 75um
Air flow rate No more than 2m/s
Dust concentration 2kg/m³
Talc dosage 2～5kg/m³
Dust blowing method Top-down
Air flow meter 1-20L/M
Metal mesh wire diameter 50um
Nominal spacing between lines 75um
Shock time 1s～99h (adjustable)
Test time timing 1s～99h (adjustable)
Dust-blowing control cycle 1s～99h (adjustable)
Vacuum time 1s～99h (adjustable)
Circulation fan Closed alloy low-noise motor. Multi-blade centrifugal fan
Air flow meter The vacuum rate is measured using a digital flow meter
Load-bearing Max. 100kgs
Observation window 1 pcs
Lighting 1 pcs
Control system test piece power socket Dustproof socket AC220V 16A
Control system PLC controller + touch screen (Sinuo)
Vacuum system Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump
Dust heating system Stainless steel mica heating jacket
Inner chamber material SUS201 stainless steel mirror panel
Outer chamber material A3 iron plate electrostatic spraying treatment
Power 3KW (no load)
Safety protection system Phase sequence protection, leakage protection, abnormal protection, instrument over-temperature protection

IEC60529 IPX5 IP6X Sand Dust Resistance Test Chamber For Big Sample
