ISO 4892-1/2 Water-Cooled Xenon Weathering Test Chamber Irradiance Range 0.3W/M2～1.1 W/M2

MOQ:	1
Price:	Negotiable
Standard Packaging:	Plywood Case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	10 Sets Per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate(Cost Additional)

Model Number

SN883-X65

Exposure Area:

6500cm2

Light Source:

6.5kW

Irradiance Display Band:

340nm, 420nm, 300～400nm

Irradiance Range:

0.3W/m2～1.1 W/m2

Temperature:

38℃～80℃

Humidity:

30%RH～75%RH

Blackboard Temperature:

40℃～110℃

Black Mark Temperature:

40℃～120℃

Highlight:

1.1 W/M2 Weathering Test Chamber

0.3W/M2 Weathering Test Chamber

Water Cooled Weathering Test Chamber

Product Description

ISO 4892-1/2 Water-Cooled Xenon Weathering Test Chamber Irradiance Range 0.3W/M2～1.1 W/M2

Product information:

This water-cooling xenon weathering test chamber conforms to ISO 4892-1,2, etc. It is with imported Q-LAB water-cooled xenon-arc lamp, spectral irradiance 0.3W/m2～1.1 W/m2 (@340nm), together with other imported high quality components, the chamber’s quality is much higher than other versions of xenon weathering test chambers in the markets.

Weathering test is an important part of product quality inspection. Application materials such as paints, plastics, aluminum-plastic panels, and automotive safety glass products require weatherability tests.

The main factors that cause the material to age are sunlight and humidity. Weatherproof test chamber can simulate hazards caused by sunlight, rain and dew. Weatherproof test chamber uses a xenon lamp to simulate the effect of sunlight, condensation moisture is used to simulate rain and dew, and the material to be tested is placed in a cycle of alternating light and moisture at a certain temperature. The test can be performed in days or weeks. Reproduce the hazards that occur outdoors for months or even years. Artificial accelerated aging test data can help select new materials, transform existing materials, and evaluate how changes in formulations affect product durability.

Technical Parameters:

1. Chamber overview

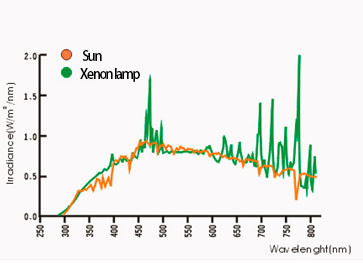

Comparison of xenon lamp spectrum and solar spectrum
Applications	This is a weatherproof test chamber that uses a long arc water-cooled xenon lamp as the light source. It can provide corresponding environmental simulation and accelerated aging test for scientific research, product development and quality control. Widely used in industries such as automotive materials, plastics, packaging, coatings, inks, dyes, stabilizers, textiles, electronics and electrical appliances.
Features	PLC controller of American GE company, automatic control, safe and reliable operation With touch screen man-machine interface, the operation is simple and powerful c) Real-time display and automatic control of sample rack temperature (BST, BPT), working room temperature (DB), relative humidity, light irradiance energy, test time Equipment status and equipment failure monitoring Setting of test parameters Information display function
Main technical
Model	SN883- X65
Dimensions	124cm×114cm×202cm (W×D×H)
Exposure area	6500cm2/ About 65 standard samples (140mm×70mm)
Light source	6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB)
Light source life	About 2000h (based on irradiance 0.51W/m2 @340nm)
Irradiance display band	340nm, 420nm, 300～400nm (can be selected)
Irradiance range	0.3W/m²～1.1 W/m²(@340nm) 40 W/m²～120 W/m²(@300nm～400nm)
Sample temperature	Blackboard temperature: 40℃～110℃ Black mark temperature:40℃～120℃
Temperature in the chamber	38℃～80℃
Humidity in the chamber	When illuminated: 30%RH～75%RH (related to temperature) In the dark: up to 100%RH
Test Conditions	Free combination of light, darkness and water spray

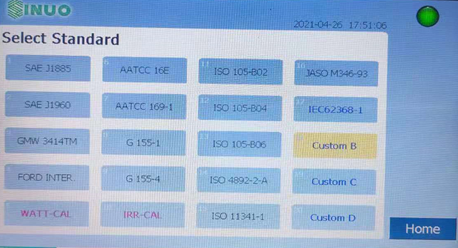

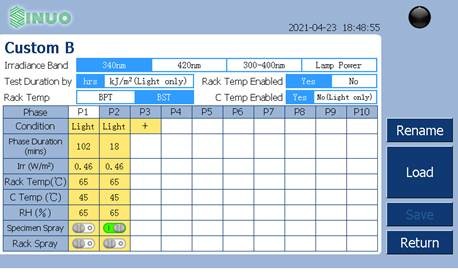

Supported test standards	Conforms to ISO 4892-1, ISO 4892-2, SAE J2412, SAE J2527, ASTMG 155ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1, GB/T 16422-2, GB/T 1865 With 4 custom methods, users can set test parameters by themselves to meet most common standard requirements.
Drum sample holder
The rotating drum sample holder can ensure the excellent irradiance uniformity of the upper, middle, and lower samples while taking into account the sample volume. In addition, the sample continuously rotates around the lamp tube with the sample holder to further ensure uniform and stable irradiance, sample surface temperature, and water spray.
Control system

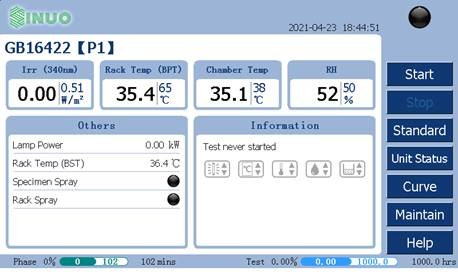

HMI	Comprehensive and easy-to-use human-machine interface (Will be in English)
Main controller	Adopting the American GE company PLC, the control is accurate, stable and reliable.

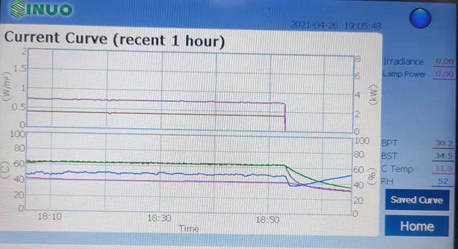

Data logging and export	Automatic recording of equipment operating status and various test parameters, users can export data for a specified period of time as needed.
Safety protection function
Overcurrent protection Over high and low irradiance alarm protection Over temperature protection Cooling water high temperature protection Low cooling water flow alarm protection Low cooling water level alarm protection Fan failure alarm protection Door open alarm protection
Use conditions
Power source	AC 380V, 50Hz, three-phase five-wire (including ground wire)
Water source	Tap water: 0.14～0.3 MPa Laboratory secondary water: 0.08～0.15 MPa Laboratory secondary water consumption: about 150 L/day
Drain	The height of the drain from the ground: ≤15cm Drain interface diameter: ≥5cm
Ambient temperature	18℃～28℃
Environment humidity	10%RH～85%RH
Installation space	≥280cm×300cm×280cm (W×D×H)
Environmental conditions	Indoor, clean, less dust, flat ground, there is no corrosive, flammable, explosive gas, liquid, dust around
Standard configuration and random accessories
Standard configuration	Host 1 Set Q-LAB 6.5kW xenon lamp 1 PC Simulated outdoor daylight filter set 1 set Irradiance calibrator 1 set Chiller 1 Set Water treatment device 1set

ISO 4892-1/2 Water-Cooled Xenon Weathering Test Chamber Irradiance Range 0.3W/M2～1.1 W/M2 1

ISO 4892-1/2 Water-Cooled Xenon Weathering Test Chamber Irradiance Range 0.3W/M2～1.1 W/M2 2

ISO 4892-1/2 Water-Cooled Xenon Weathering Test Chamber Irradiance Range 0.3W/M2～1.1 W/M2 3
