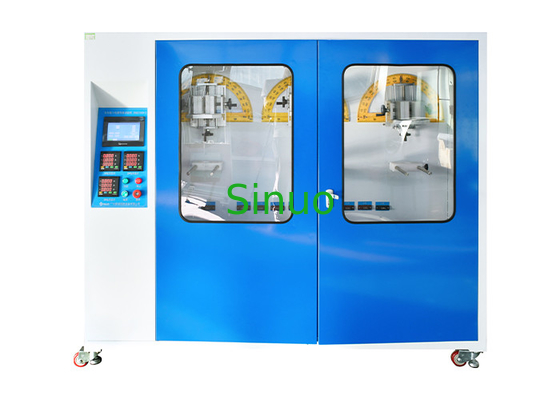

IEC 62196-1 Electric Vehicle Charging Plug And Socket Cable Flexing Test Equipment
Standard For Electric Vehicle Charging Plug And Socket Cable Flexing Test Equipment:
IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15
IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4
Product Information For Electric Vehicle Charging Plug And Socket Cable Flexing Test Equipment:
Samples and Restrictions: Electric vehicle charging interfaces, industrial plug sockets and couplers
Test Purpose: It is used for the bending connection part test of the "mechanical strength" part of the power connection cable of the plug and socket of the charging vehicle
Test Principle: It uses the servo motor to drive the turntable to drive the workpiece to swing left and right, and automatically stops when the number of times is reached.
Structure: The equipment is driven by a servo motor, and the large-size sample is installed with an aluminum plate, which can make the swing axis coincide with the point where the flexible wire enters the appliance as much as possible when the sample is clamped, so as to achieve the minimum lateral displacement of the flexible wire and the load.
Power supply: AC220V±10%/50-60Hz, power 3KW
Dimensions: about W1900*D850*H1620mm; weight: about 250kg
Technical Parameters For Electric Vehicle Charging Plug And Socket Cable Flexing Test Equipment:
| Test stations | 3 stations |
| Electrical control method | PLC intelligent integrated control, 7-inch man-machine touch interface operation |
| Drive mode | Servo motor drive |
| Specimen clamping method | Mechanical clamping, adjustable clamping point position |
| Bending angle | 0-360° can be adjusted arbitrarily (default ±45°) |
| Bending rate | 0-60 times/min, can be preset |
| Bending times | 0~999999 can be preset, the default is 20000 times |
| Load weight | 20N, 25N, 50N, 75N, 100N |
| Load power | External, optional load cabinet with adjustable voltage between conductors of 0-250V and adjustable current of AC0-400A |
| Test judgment | Judging by the signal given whether the current is conducting or not |
|
|
