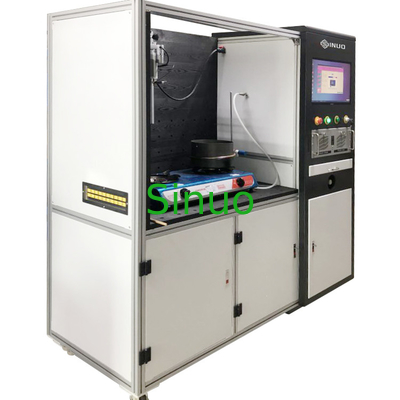

IEC60335-2-21 Range Hoods Heating Performance Test Equipment
Standards for Range Hoods Heating Performance Test Equipment:
This heating stove testing system is designed and manufactured according to the requirements of Chapter 11 and Figure 101 in IEC 60335-2-21 standards.
Structure for Range Hoods Heating Performance Test Equipment:

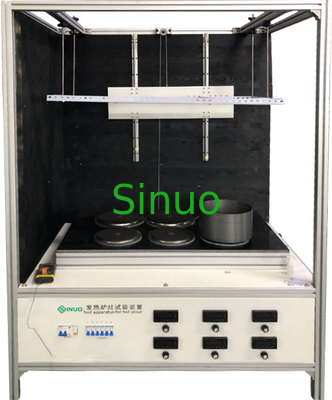

The test corner simulates the temperature rise environment, and is compatible with range hood testing and gas stove testing.
Technical Parameters for Range Hoods Heating Performance Test Equipment:
| Working power | 220V, 50Hz, equipment power is about 10500W |
| Electric heating power | There are 6 burners, of which the input power of the rear 3 are 2KW, and the input power of the front 3 are 1.5KW (German EGO burner, with small power error and long service life). |
| Panel size | The left panel is about 800*1200mm, cloth 9*6=54 temperature measurement points, the rear panel is about 1200*1200mm, cloth 9*9=81 temperature measurement points, and the point layout is 100*100mm square. |
| Brass sheet for temperature measurement | Diameter 15mm, thickness 1mm. |
| Thermocouple wire | The diameter is less than 0.3mm, and the K-type OMEGA original thermocouple wire is uniformly connected to the terminal block. |
| Dimensions | About 1200*800*2000 (length*width*height mm) |
| Accessories | Equipped with 6 containers of the same size or close to the size of the stove, and additionally equipped with 20 4-meter-long thermocouple wires. |
| Measured heat load /kW | Size of pot /mm | heating water /kg | |||||||
|
Pot inner diameter φA |
Bottom thickness C | Pot wall thickness D | pot depth H | corner radius E |
Bottom area /cm2 |
pot quality /g | Lid quality /g | ||
| ＜1.72 | 200 | 2 | 1.5 | 130 | 2.5 | 314 | 540 | 125 | 3 |
| 2.08 | 220 | 140 | 3 | 380 | 680 | 149 | 4 | ||
| 2.48 | 240 | 150 | 3.5 | 452 | 800 | 177 | 5 | ||
| 2.91 | 260 | 2.5 | 1.8 | 160 | 531 | 965 | 208 | 6 | |
| 3.36 | 280 | 170 | 615 | 1130 | 290 | 8 | |||
| 3.86 | 300 | 180 | 707 | 1350 | 323 | 10 | |||
| 4.40 | 320 | 190 | 804 | 1520 | 360 | 12 | |||
| 4.95～ | 340 | 200 | 4 | 907 | 1800 | 402 | 14 | ||
| Tolerance | ±1% | ±0.1 | ±0.1 | ±1% | 0～0.5 | ±5% | ±5% | ||
|
|
