IEC 61851-1 Stainless Steel IPXXD Test Rob Probe D With 3 N Force

IEC 61851-1 Stainless Steel IPXXD Test Rob Probe D With 3 N Force

MOQ: 1
Price: Customized
Standard Packaging: Case
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-4
Model:
SN2210-4T
Name:
Test Rod Probe D With Force
Test Wire Diameter:
Ф1+0.05 0 (mm)
Stop Face Diameter:
SФ35±0.2 (mm)
Handle Diameter:
Ф10 (mm)
Test Wire Length:
100±0.2 (mm)
Handle Length:
100 (mm)
Built-in Force:
3N Force
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Case
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
20 Sets Per Month
High Light:

IPXXD Test Rob Probe D

,

Stainless Steel Test Rob Probe D

,

IEC 61851-1 Test Rob Probe D

Product Description



IEC 61851-1 Stainless Steel IPXXD Test Probe With Force



Product overview:



This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.



Technical parameters:



Model SN2210-4 SN2210-4T (Optional)
Name Test rod probe D Test rod probe D with force
Test Wire Diameter Ф1+0.05 0 (mm) Ф1+0.05 0 (mm)
Stop Face Diameter SФ35±0.2 (mm) SФ35±0.2 (mm)
Handle Diameter Ф10 (mm) Ф10 (mm)
Test Wire Length 100±0.2 (mm) 100±0.2 (mm)
Handle Length 100 (mm) ----
Built-in Force N/A 3N force

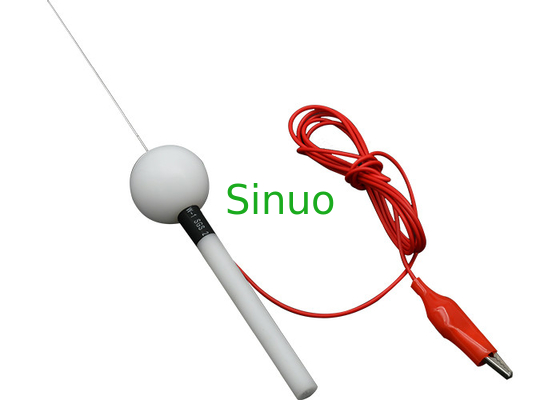

IEC 61851-1 Stainless Steel IPXXD Test Rob Probe D With 3 N Force 0



IEC 61851-1 Stainless Steel IPXXD Test Rob Probe D With 3 N Force 1





Applicable standard



This probe conforms to the standard requirement of IEC61032 figure 4 test probe D, it is required by IEC 61851-1 clause 8 and 12.4, IEC 60335-1 clause 22.1, IEC60529 for IP4, IEC60065 and etc.



Customizable



It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with a pull and push force gauge). The probe whose model number with "T" is with built in force.
