IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping



Product information:



It conforms to IEC62133-1:2017 clause 7.3.4, IEC62133-2:2017 clause 7.3.8.2, IEC 60225-1 clause 6.13.2, IEC 60225-27 clause 10.6.2.2 and clause 10.6.2.3, IEC6IEC60086-4 clause 6.4.4, IEC 60068-2-29, IEC 60335-2-25 Annex BB, YD/T 2344.1 and etc.



Technical Parameters:



Function& Features This hydraulic shock impact test system has the special designed control and measuring system
Adopt USB2.0interfaceconnect with PC, transfer control signal and measuring data.
With power cut off protection function, bench lifting height limitation function and pre-shock alarm function, safety reliable.
Base on DSP high quality dynamic measuring, analyzing and control system, shock impact control system also professional for shock pulse and analyzing. Consist of control system, measuring system and Windows based software, hardware adopts module and low noise design, realized the circuit of control and measuring functions all in the interface cabinet, and with independent structure combination (control cabinet and measuring cabinet separate). Use USB2.0 communication, independent from PC. Applied for normal shock and heavy shock environment shock event capture, measuring and analyzing. Complied with standard ISO,MIL-STD,IEC,OEO,ASTM etc.
Technical Parameters Input channel
Input channel With1input electric input channel
Sampling Frequency Max 200k
Voltage Range -10Vp~+10Vp
Coupling Mode Electric Mode
ADC Resolution 16 bites
Pulse Width 0.5-1,000ms
Acceleration 5000g
Dynamic Range 80dB
Total Harmonic Distortion <-95dB
Signal to Noise ratio >95dB
Frequency Accuracy 0.01%
Standard Compliance ISO, MIL-STD-810, or customized standards
External Trigger With
Mechanical Parameters
Dimension 242mm×220mm×96mm
Weight 2.5kg
Picture for reference IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 0
Adaptive Digital Filter Filtration type Lowpass and high pass filter can use simultaneously
Filtration Features Able to set different filter channel for each.
Low pass filtering parameter No filtration, cut-off frequency, filter ratio
High pass filtering parameter Do not filter cut-off frequency
Ideal Wave Wave type Half sinusoidal wave, trapezoidal wave, final peak saw tooth shock pulse
Standard Compliance ISO, MIL-STD-810, or customized standards
Auto Calibration Automatically add the capture wave to ideal wave
Verification Auto comparison difference of captured wave and setting wave
Display Display the consistence of captured wave and setting wave
Trigger Trigger Source Simulate input channel, external trigger, non-trigger
Trigger Double Edge
Trigger Level 1~99%Of Relative ideal wave acceleration
Running Mode Manual running, auto running.
Auto Noise Reducing Optional function, setting noise reducing percentage trigger edge: double edge
Data Saving Memory Device Data recording, signal store, content can be customized according requirements
Re-display Manual replay shock wave
Data Output Direct output to Excel report
WORD Test Report According users setting automatically create word report, report content and format user can customize
Running Records Software auto record the running process
Software interface (Half sinusoidal wave diagram) IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 1

Final Peak

Sawtooth wave

(Optional)

IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 2
Trapzoidal Wave Optional IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 3
Half sinusoidal wave generator Half sinusoidal wave generator mainly made of industrial rubber (considering the rubber strength and polymerization). Wave generator adopt cylindrical, normally with different thickness, as picture shows. Different thicknesses combined, with multi strength, realize different shock pulse width.
IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 4


Measuring Control System Main Technical Parameters:



High Current Contactor

(1) Long distance connects and disconnect DC voltage to 220V.

(2)Rated working current 1000A,installed with series connection magnetic blow mediastinal plate clay arc shield arc extinguishing system.

(3) Plane layout structure, electromagnetic system and machine contactor arc extinguishing system fixed on under frame independently. Adopt angular rotation clapper type electromagnetic system and double winding attracting coil, add arris pressing device on the rotating angular. Main contactor made with red copper. With low contact resistance, high reaction speed

(4) Reliable contactor acting, safety, long service life, and easy repair and maintenance.

Remote Controller

(1) Long distance wireless control;

(2) Reliable and stable work, with auto- locking and interlocking function, strong anti-interference ability, long service life.

Voltmeter

(1)Measuring voltage:0-100V,ensure testing accuracy;

(2)Display accuracy:F.S ±0.2% rdg ±1digit;

(3)Drive method:double integral method

Ammeter

(1)Measuring current:0-1000A and 0-500A DC;

(2)Display Accuracy:F.S±0.2% rdg±1digit;

(3)Drive method:double integral method

Standard Configuration The battery short circuit tester consist of high current contactor, remote controller, voltmeter, ammeter etc.

Touch Screen Control

(in English)

    IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 5



Shock Impact Test System Main Technical Parameters:



Max. Loading Capacity 10kg (can be customized)
Bench Dimension 200mm×200mm (can be customized, cost is different)
Pulse Wave Half sinusoidal wave
Shock Peak Acceleration Half sinusoidal wave:150~20000m/s2
Pulse Duration Time Half sinusoidal wave: 0.6~20ms
Max. Shock Frequency 80 times/min
Max. Shock Height 1500mm
External Dimension 1000mm×500mm×2700mm
Power Consumption 2.5KVA
Bench Mass 1500kg
Power AC 380V±10% 3 Phase, 60Hz
Anti-secondary shock advice Hydraulic Friction Braking Device
Working Condition Power: AC 380V±10% 3 Phase, 60Hz
Environment Temp.: 5℃-40℃
Relative Humidity: ≤90%(25℃)
Surrounding Environment: No corrosion medium, dry, good ventilation, away from electromagnetic influence and strong vibration source.


Application:



This fully automatic shock test system is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve the products and packages structure.



Feature:



1. This automatic shock test system with Windows operating system, easy for

operation, operator only need to type into testing data, system will automatic configurate

parameters and control machine, finish shock test accurately.

2. With anti-re-shock brake device, shock table fall freely, when shock wave pad rebound,

hydraulic brake piston impact thus shock table braking, avoid secondary shock and achieve accurate shock data.

3. With effective vibration damping device; for large shock tester, when do shock testing it has large instantaneous impact force, this device largely reduced the shock impact to the floor, small than 350×350mm ones no need special foundation, easy for installation.

4. Digital setting of shock height, shock table automatically lifting, with high control accuracy and good repetitively.

5. Configured with shock measuring system, shock energy data and wave with real time

display.

6. With high acceleration generator, for small testing specimens which need high

acceleration shock test, able to fix high acceleration generator on shock table, it can obtain

higher acceleration than IS series shock tester according to impact energy transfer principle. For specimen smaller than 200×200mm the testing requirements is: peak acceleration 5000-50000m/s2, acceleration duration time 0.2~1ms.



IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 6



IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 7

products
PRODUCTS DETAILS
IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping
MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN558
Sampling Frequency:
Max 200k
Voltage Range:
-10Vp~+10Vp
Coupling Mode:
Electric Mode
ADC Resolution:
16 Bites
Pulse Width:
0.5-1,000ms
Acceleration:
5000g
Dynamic Range:
80dB
Total Harmonic Distortion:
<-95dB
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
5 Sets Per Month
High Light

Battery Acceleration Impact Test System

,

IEC62133-1 Battery Acceleration Impact Test System

Product Description



IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping



Product information:



It conforms to IEC62133-1:2017 clause 7.3.4, IEC62133-2:2017 clause 7.3.8.2, IEC 60225-1 clause 6.13.2, IEC 60225-27 clause 10.6.2.2 and clause 10.6.2.3, IEC6IEC60086-4 clause 6.4.4, IEC 60068-2-29, IEC 60335-2-25 Annex BB, YD/T 2344.1 and etc.



Technical Parameters:



Function& Features This hydraulic shock impact test system has the special designed control and measuring system
Adopt USB2.0interfaceconnect with PC, transfer control signal and measuring data.
With power cut off protection function, bench lifting height limitation function and pre-shock alarm function, safety reliable.
Base on DSP high quality dynamic measuring, analyzing and control system, shock impact control system also professional for shock pulse and analyzing. Consist of control system, measuring system and Windows based software, hardware adopts module and low noise design, realized the circuit of control and measuring functions all in the interface cabinet, and with independent structure combination (control cabinet and measuring cabinet separate). Use USB2.0 communication, independent from PC. Applied for normal shock and heavy shock environment shock event capture, measuring and analyzing. Complied with standard ISO,MIL-STD,IEC,OEO,ASTM etc.
Technical Parameters Input channel
Input channel With1input electric input channel
Sampling Frequency Max 200k
Voltage Range -10Vp~+10Vp
Coupling Mode Electric Mode
ADC Resolution 16 bites
Pulse Width 0.5-1,000ms
Acceleration 5000g
Dynamic Range 80dB
Total Harmonic Distortion <-95dB
Signal to Noise ratio >95dB
Frequency Accuracy 0.01%
Standard Compliance ISO, MIL-STD-810, or customized standards
External Trigger With
Mechanical Parameters
Dimension 242mm×220mm×96mm
Weight 2.5kg
Picture for reference IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 0
Adaptive Digital Filter Filtration type Lowpass and high pass filter can use simultaneously
Filtration Features Able to set different filter channel for each.
Low pass filtering parameter No filtration, cut-off frequency, filter ratio
High pass filtering parameter Do not filter cut-off frequency
Ideal Wave Wave type Half sinusoidal wave, trapezoidal wave, final peak saw tooth shock pulse
Standard Compliance ISO, MIL-STD-810, or customized standards
Auto Calibration Automatically add the capture wave to ideal wave
Verification Auto comparison difference of captured wave and setting wave
Display Display the consistence of captured wave and setting wave
Trigger Trigger Source Simulate input channel, external trigger, non-trigger
Trigger Double Edge
Trigger Level 1~99%Of Relative ideal wave acceleration
Running Mode Manual running, auto running.
Auto Noise Reducing Optional function, setting noise reducing percentage trigger edge: double edge
Data Saving Memory Device Data recording, signal store, content can be customized according requirements
Re-display Manual replay shock wave
Data Output Direct output to Excel report
WORD Test Report According users setting automatically create word report, report content and format user can customize
Running Records Software auto record the running process
Software interface (Half sinusoidal wave diagram) IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 1

Final Peak

Sawtooth wave

(Optional)

IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 2
Trapzoidal Wave Optional IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 3
Half sinusoidal wave generator Half sinusoidal wave generator mainly made of industrial rubber (considering the rubber strength and polymerization). Wave generator adopt cylindrical, normally with different thickness, as picture shows. Different thicknesses combined, with multi strength, realize different shock pulse width.
IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 4


Measuring Control System Main Technical Parameters:



High Current Contactor

(1) Long distance connects and disconnect DC voltage to 220V.

(2)Rated working current 1000A,installed with series connection magnetic blow mediastinal plate clay arc shield arc extinguishing system.

(3) Plane layout structure, electromagnetic system and machine contactor arc extinguishing system fixed on under frame independently. Adopt angular rotation clapper type electromagnetic system and double winding attracting coil, add arris pressing device on the rotating angular. Main contactor made with red copper. With low contact resistance, high reaction speed

(4) Reliable contactor acting, safety, long service life, and easy repair and maintenance.

Remote Controller

(1) Long distance wireless control;

(2) Reliable and stable work, with auto- locking and interlocking function, strong anti-interference ability, long service life.

Voltmeter

(1)Measuring voltage:0-100V,ensure testing accuracy;

(2)Display accuracy:F.S ±0.2% rdg ±1digit;

(3)Drive method:double integral method

Ammeter

(1)Measuring current:0-1000A and 0-500A DC;

(2)Display Accuracy:F.S±0.2% rdg±1digit;

(3)Drive method:double integral method

Standard Configuration The battery short circuit tester consist of high current contactor, remote controller, voltmeter, ammeter etc.

Touch Screen Control

(in English)

    IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 5



Shock Impact Test System Main Technical Parameters:



Max. Loading Capacity 10kg (can be customized)
Bench Dimension 200mm×200mm (can be customized, cost is different)
Pulse Wave Half sinusoidal wave
Shock Peak Acceleration Half sinusoidal wave:150~20000m/s2
Pulse Duration Time Half sinusoidal wave: 0.6~20ms
Max. Shock Frequency 80 times/min
Max. Shock Height 1500mm
External Dimension 1000mm×500mm×2700mm
Power Consumption 2.5KVA
Bench Mass 1500kg
Power AC 380V±10% 3 Phase, 60Hz
Anti-secondary shock advice Hydraulic Friction Braking Device
Working Condition Power: AC 380V±10% 3 Phase, 60Hz
Environment Temp.: 5℃-40℃
Relative Humidity: ≤90%(25℃)
Surrounding Environment: No corrosion medium, dry, good ventilation, away from electromagnetic influence and strong vibration source.


Application:

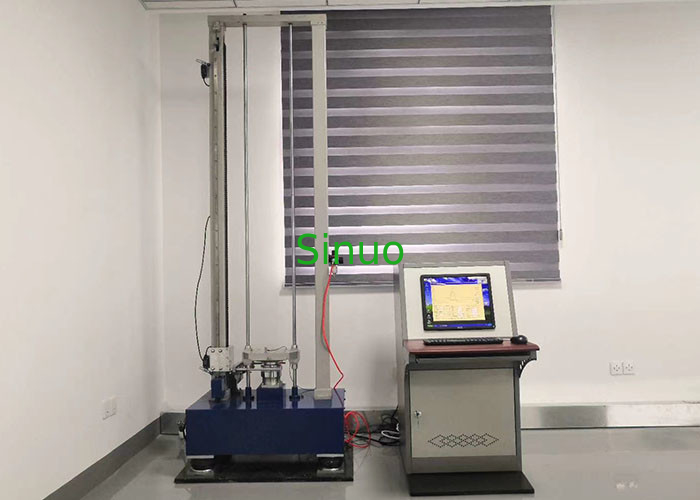

This fully automatic shock test system is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve the products and packages structure.



Feature:



1. This automatic shock test system with Windows operating system, easy for

operation, operator only need to type into testing data, system will automatic configurate

parameters and control machine, finish shock test accurately.

2. With anti-re-shock brake device, shock table fall freely, when shock wave pad rebound,

hydraulic brake piston impact thus shock table braking, avoid secondary shock and achieve accurate shock data.

3. With effective vibration damping device; for large shock tester, when do shock testing it has large instantaneous impact force, this device largely reduced the shock impact to the floor, small than 350×350mm ones no need special foundation, easy for installation.

4. Digital setting of shock height, shock table automatically lifting, with high control accuracy and good repetitively.

5. Configured with shock measuring system, shock energy data and wave with real time

display.

6. With high acceleration generator, for small testing specimens which need high

acceleration shock test, able to fix high acceleration generator on shock table, it can obtain

higher acceleration than IS series shock tester according to impact energy transfer principle. For specimen smaller than 200×200mm the testing requirements is: peak acceleration 5000-50000m/s2, acceleration duration time 0.2~1ms.



IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 6



IEC 62133-1 Battery Acceleration Impact Test System With Vibration Damping 7

Sitemap |  Privacy Policy | China Good Quality Electrical Appliance Testing Equipment Supplier. Copyright © 2019-2024 sinuotek.com . All Rights Reserved.
