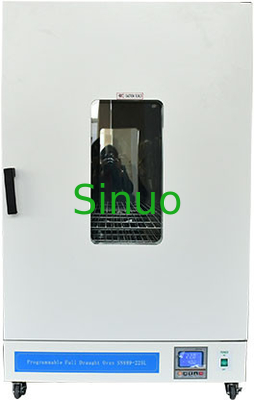

IEC 62133-1 Clause 7.2.3 Forced Convection Air Circulation Oven
Product information:
This air circulation oven is required by IEC 62133-1:2017 clause 7.2.3, IEC 62133-2 clause 7.2.2, etc.
Technical Parameters:
| Power supply | AC 220V, 60Hz |
| Temperature Range | RT+10 ~250°C |
| Display Resolution | 0.1°C |
| Temperature Fluctuation | ±1°C |
| Power Rating | 4.5 W |
| Temperature Uniformity | ±2°C |
| Display Method | LCD screen |
| Air Circulation Method | Forced convection |
| Volume / Working Area Size (W* H* D) | 50cm*60cm**50cm |
| Outer Dimensions (W* H* D) | Approx. 690cm*950cm*65cm |
1. The drying oven must be good grounded to ensure safe.
2. The drying oven should be placed in a room with good ventilation conditions and no
inflammable and explosive materials or toxic substances around it.
3. There is no explosion-proof device in the drying oven, don’t put inflammable and
explosive materials into it for drying.
4. Do not overcrowd the objects in the oven, especially around the temperature sensor, make room for hot air circulation.
5. Do not wipe the machine surface with acid or alkali or corrosive substances. The inside
and outside of the drying oven should be kept clean. If it is not used for a long time, cover
it correctly and put in a dry room. If any abnormality in use, please cut off the power supply
and contact us in time.
6.Be careful of scalding when using in high temperature.
