| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10 Sets Per Month |

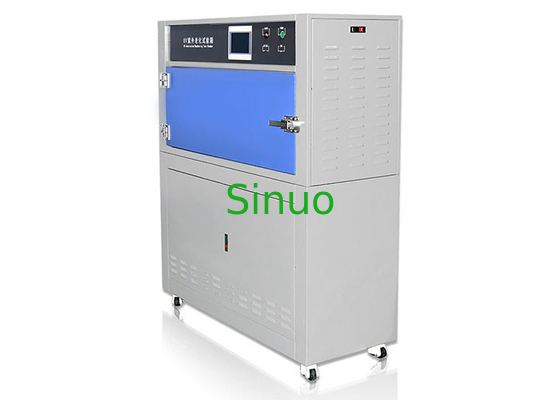

ISO 4892 Intelligent UV Weatherproof Accelerated Aging Test Chamber
Brief Introduction:
The Intelligent UV Weatherproof Accelerated Aging Test Chamber is applicable widely in coatings, inks, paints, resins, plastics, rubber, printing and packaging, aluminum profiles, adhesives, automobiles, motorcycle industries, cosmetics, metals, electronics, electroplating, medicine, etc.
Equipment structure: Parallelly install 8 lamps in a stainless steel chamber to stimulate the ultraviolet light. The temperature of the inner chamber is raised by the humidification system to simulate the humid environment, and then the spray system is used to simulate the rain. According to the programmed setting to make the three different environments cycle alternately.
The UV Weatherproof Test Chamber is designed and manufactured according ton the standard requirements of ISO 4892-82, ASTM G 154, ISO 4892-3; ISO 11507; ASTMD 4329, and etc., which can simulate the hazards caused by sunlight, rain, and dew. Adopt fluorescent UV lamps to simulate the effect of sunlight, use condensed moisture to simulate rain and dew, and place the tested material at a certain temperature to alternate between light and moisture test in the loop program. The test chamber takes few days or few months, which can reproduce hazards that occur outdoors. Hazard types include: fading, discoloration, loss of gloss, chalking, cracking, turbidity, bubbles, embrittlement, strength loss, and oxidation. The UV test data can help to select new materials and evaluate how changes in formulation affect the durability of new products.
Technical parameters:
| Inner chamber size | 1140*600*500 mm(W×D×H) |
| Outer chamber size | Approx. 1420*700*1660mm(W×D×H) |
| Condensing temperature | 50℃ |
| Temperature uniformity | ±3℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature resolution | 0.1℃ |
| Blackboard temperature | 50℃～63℃ |
| Lamp wavelength | UVA-340, band 315-400nm, irradiance 0.35-1.2W/m2 |
| Quantity of tubes | 8 PCS |
| Lamp power | 40W/PC |
| Lamp brand | China |
| Lamp lifespan | Around 1600 hours |
| Distance between sample and lamp | 100～300mm |
| Central distance inside the lamp | 65～70mm |
| Test time | 1～9999 H, M, S, the time can be adjustable |
| Control system | Independent research and development of touch screen and PLC controller |
| Sprinkler system | Quantity of nozzles: 8 PCS stainless steel nozzle; Nozzle aperture: 2mm |
| Inner chamber material | SUS304 stainless steel plate |
| Outer chamber material | SUS201 stainless steel |
| Sample installation method | The test sample is fixed on the test stand and face the fluorescent lamp |
| Test temperature | Three different temperatures of 50, 60, and 70 °C, which can be used for illumination, and 60 °C is preferred; the temperature in the condensation stage is 50 °C, and the temperature tolerance uniformity is ±3 |
| Lighting cycles of each condensation |
The cycle of each condensation of illumination can be selected from two cycles: One is 4H illumination and 4H condensation; and the other is 8H illumination and 4H condensation. After the first illumination of 400-450H, each row of lamps needs to be replaced with a fluorescent lamp, and the other lamps shall compensate for the loss caused by the aging of the lamps according to the lamp cycle and replacement method. This operating mode ensures that the lifespan of each lamp is 1600-1800H. |
| Precautions when replacing the lamp | When replacing the lamp, the water tray should be wiped dry and cleaned to avoid the formation of scale |
| S.N. | Item | Brand | Remark |
| 1 | Touch screen controller | Kungluntongtai | |
| 2 | PLC | XINJE | |
| 3 | AC contactor | CHNT | |
| 4 | Intermediate relay | ANV/OMRON | |
| 5 | Solid state relay | Yangming | |
| 6 | Button with lamp | Onpow | |
| 7 | Emergency stop | Onpow | |
| 8 | Power supply switch | Meanwell | |
| 9 | Breaker | CHNT | |
| 10 | Over temperature protector | Korea Rainbow | |
| 11 | Humidification tube | Customized | |
| 12 | Water pump | PLD | |
| 13 | Stainless steel water pump | Lingxiao | |
| 14 | Light line | Customized | |
| 15 | Rectifier | Philips | |
| 16 | UVA-340 | China | |
| 17 | Stainless steel sprinkler | Customized | |
| 18 | Heating wire | Customized |
Accessory List
| Items | Quantity | Remark |
| Filter element 5 inches | 2 PCS |
