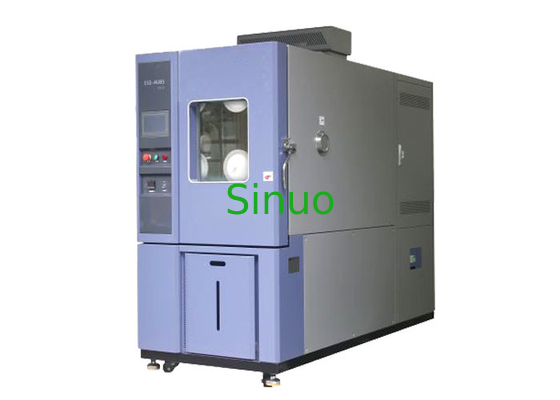

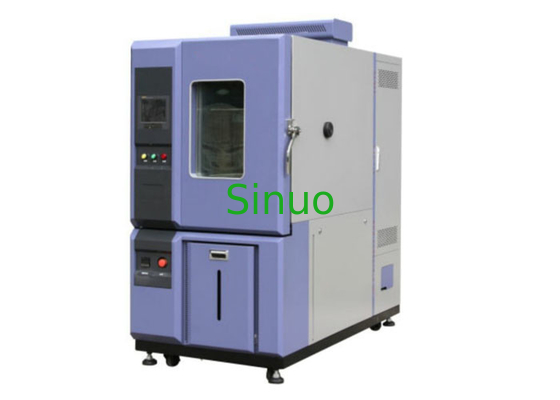

IEC 62196-1 Electric Vehicle Connectors Temperature Change Test Chamber

IEC 62196-1 Electric Vehicle Connectors Temperature Change Test Chamber

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 days
Payment Method: L/C, T/T
Supply Capacity: 10 Sets / Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN885
Applied Standard:
IEC 62196-1 2020
Chamber Volume:
1000L
Linear Speed:
3 K/min
Temperature Deviation:
≦±2.0℃
Temperature Fluctuation:
±0.5℃
Temperature Uniformity:
±2℃
Temperature Range:
-40~150℃
Chamber Inner Size:
WDH=1000×1000×1000mm
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 days
Payment Terms:
L/C, T/T
Supply Ability:
10 Sets / Month
High Light:

Vehicle Connectors Temperature Change Test Chamber

,

IEC 62196-1 Temperature Change Test Chamber

,

1000L Temperature Change Test Chamber

Product Description



IEC 62196-1 Electric Vehicle Connectors Temperature Change Test Chamber





Standards:

IEC60068-2-1:2007 "Environmental Testing-Part 2-1:Tests-Test A:Cold,IDT"

IEC60068-2-2:2007 "Environmental Testing-Part 2-1:Tests- Test B-Dry heat,IDT"

IEC60068-2-78:2001 "Environmental Testing-Part 2-78:Tests-Test Cab: Damp heat,steady state,IDT"

IEC60068-2-30:2005 "Environmental Testing-Part 2-30:Tests-Test Db: Damp heat,cyclic(12h+12h cycle),IDT"



Product overview:

The equipment sample scope is electronic appliances, food, automobile, rubber plastic materials, metal and other products of parts and materials, such as optical fiber, LCD, crystal, inductance, PCB, battery, computer, mobile phone, rubber, plastic and other products.
Mainly used for electronic, electrical, electrical, plastic and other raw materials and devices for cold resistance, heat resistance, moisture resistance, dry resistance test, the purpose is to confirm the product in high and low temperature rapid alternating humid heat environment storage, transportation, use of reliable performance.
It adopts heating, humidification and refrigeration system to realize the control and change of the environment temperature and humidity in the box body, simulating the environment temperature and humidity required by the product and alternating procedures



Structure:

The machine adopts a closed box structure, features are as follows:
1, energy saving and consumption reduction: using gas-liquid bypass mode to adjust the cooling capacity, to achieve the constant temperature and humidity.
2, easy to operate: using Velon programmable temperature and humidity controller (7 inch 16-bit true color touch screen), experimental data recording, processing mode is flexible
3, high reliability: key parts are imported parts, to ensure service life and reliability; Efficient oil separator ensures compressor service life.



Control system:

Touch screen: Using Vellon programmable temperature and humidity controller (7 inch 16-bit true color touch screen)
Temperature control: PID self-tuning, using A class PT100 platinum resistance sensor
Function: fixed value test and program test
Constant test: When the test environment requires only a single temperature and humidity, select this mode to set the required temperature, humidity and running time
Program test: when the test environment requires a variety of temperature and humidity, select this mode, you can set the temperature, humidity and running time of each program, you can set the program running sequence, you can use 100 program groups



Features:

Control and operation PLC and touch screen intelligent control system
Box size (optional) 408L: Inner WDH=800 x 600 x 850mm, outer WDH=1060 x 2300 x 1880mm
Temperature range (optional) 960L: Inner WDH=1800×800×1000mm, outer WDH=2200×3350×2050mm
Linear speed 1000L: WDH for inner container =1000 x 1000 x 1000mm, WDH for outer container =1700 x 3000 x 2200mm
The temperature deviation A: - 20 ~ 150 ℃;
Temperature fluctuation B: - 40 ~ 150 ℃;



IEC 62196-1 Electric Vehicle Connectors Temperature Change Test Chamber 0
