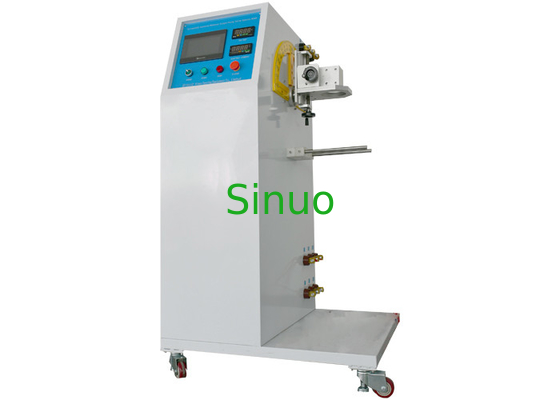

Electric Vehicle Non-rewireable Mechanical Strength Flexing Testing Apparatus
Product information:
The test equipment is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.
Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.
Applied standard & clauses:
IEC 62196-1Ed.4CDV 2020 clause 26.4, fig 20, table 14.
Structure:
The device is driven by a servo motor, with mounting aluminum plate for large size samples, it can realize that the oscillation axis matches the cord entering point as much as possible when clamping the sample, thereby achieving a minimum lateral displacement of the flexible cable and load.
Technical parameters:
| Test Station | Single |
| Electrical Control Method | PLC intelligent integrated control, 7-inch humanized touch interface operation |
| Drive Mode | Servo motor |
| Sample Clamping Method | Mechanical clamping, the position of clamping point is adjustable |
| Flexing Angle | 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical) |
| Flexing Rate | 0-60 cycles / min, can be preset |
| Flexing Cycles | 0~999999 can be preset, default 20000 cycles |
| Load Weights | 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N |
| Load Power | External (not included), load cabinet with adjustable voltage between conductors 0-250V and current AC0-800A adjustable is optional |
| Test Judgment | Judging by the signals given when the current is conducting or not |
| Equipment Dimensions & Weight | W950*D650*H1600mm, the whole machine is about 320Kg |
| Power Supply | Single phase AC220V±10%, 60Hz, 10A |
