| MOQ: | 1 |
| Price: | negotiation |
| Delivery Period: | 15days |

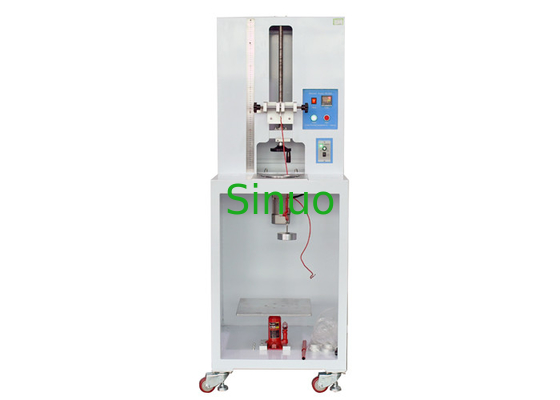

IEC 62196-1 Ed.4 Clamping Screw Terminal Tester for Electric Vehicle
Product information:
This testing machine conforms to IEC 62196-1Ed.4CDV 2020 clause 13.3.1 fig12, table 3.
This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.
The testing times can be preset before the test, and the compliance stops automatically with the alarm when the testing times are reached.
Technical parameters:
| Power Supply: | AC220V,60Hz |
| The range of counting number: | 1~9999 (150 times (15 min) is by default. |
| Rate of Testing: | (10±2) r/min |
| Rotating weight: | 0.4~70.3kg (details refer to following table 3) |
| The rotating diameter: | 75mm |
| The diameter of bushing hole (mm): | 6.5,9.5, 13,14.5,15.9,19.1,22.2,25.4,28.6, 31.8, 38.1, 44.5mm (details refer to following table 3) |
| Height(H)(mm): | 260-660mm |
| Size: | 790mmX400mmX1500mm |
The busing and mass configuring is as following table:
