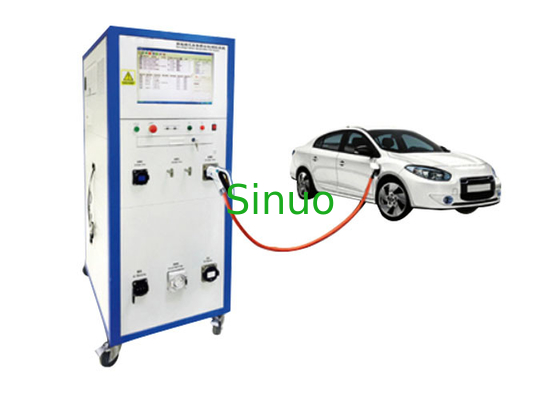

New Energy Vehicles Particular Safety Test System for Whole Vehicle
System features:
1. Meet the requirements of automotive-related national and international standards: such as GB/T 18384, GB/T 18487, GB/T 20234, etc.
2. Multi-function in one: AC and DC withstand voltage, charging socket insulation, whole vehicle insulation, insulation resistance monitoring, leakage current, potential equalization, fast charging function, slow charging function.
3. High test accuracy: the basic accuracy of safety testing is 1.5%, and the measurement accuracy of electrical parameters is 0.5%.
4. Record the vehicle VIN number, VSN number and main part number, and print a test result for each vehicle.
5. Bar code recognition, automatic matching, automation, and intelligent testing.
6. Data storage, query and screening, information management.
7. Perfect protection: if the plug is not plugged in, the device will not start high voltage detection; pulling out the plug in the detection state will cut off the power supply to the socket.
8. It can be extended to connect with MES system.
9. 19" LCD display
10. Support customization.
Technical Parameters:
| Potential Equalization | |
| Test channel | 10 channels |
| Test method/No-load output voltage | Four-wire system |
| Output current setting range | DC:1.00~32.00A |
| Output current accuracy | ± (1% of setting+0.20A) |
| Grounding resistance setting range | Upper limit: 0~600mΩ; lower limit: 0~600mΩ; 0=off |
| Grounding resistance measuring range | 0.0~600mΩ |
| Grounding resistance measuring accuracy | ± (1% of reading+3mΩ) |
| Test time setting range | 0.0, 0.1~999.9s 0.0=Continuous output |
| Test time setting range accuracy | ± (1% of setting+0.05s) |
| Charging Socket Insulation | |
| Output voltage ripple | Resistive load, 1000V/1mA, <5% |
| Output voltage setting range/accuracy | DC:100~1000V ccontinuous adjustable ± (1% of setting+3V) |
| Insulation resistance setting range | Upper limit: 0,1~3000MΩ; lower limit: 1~3000MΩ; 0=off |
| Resistance compensation | >30MΩ |
| Insulation resistance measuring range | 0.05~99.99~999.9~3000MΩ |
| Insulation resistance measuring accuracy | 100~499V:0.1 ~2000MΩ:± (5% of reading+2MΩ) |
| 500~1000V:0.2 ~1000MΩ:± (2% of reading+2digitals) | |
| 1000 MΩ~3000 MΩ:± (5% of reading+2digitals) | |
| Delay time setting range | 0.5~999.9s |
| Test time setting range | 0.0, 0.1~999.9s, 0.0= Continuous output |
| Test time setting accuracy | ± (1% of setting+0.05s) |
| Whole Vehicle Insulation Test | |
| Insulation resistance setting range |
Upper limit 0,0.00-100.0MΩ 0=close, lower limit 0.00- 100 00MΩ |
| Insulation resistance measurement range | 0.20- 100.00MΩ |
| Insulation resistance measurement accuracy | ±(2% reading value + 2 words) |
| Test time setting range |
0.0- 999.9S 0.0=continuous output |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
| Insulation Monitoring | |
| Test time setting range |
0.0- 999.9S 0.0=continuous output |
| Test time accuracy | ±(0.1% setting value+0.05s) |
| Judgment type | Whether the automotive insulation monitoring is normal and alarm |
| AC Withstand Voltage | |
| Withstand voltage test type | Cold withstand voltage test |
| Rated output load | 200VA (AC: 5000V/40mA ) |
| Output voltage adjustment rate | <2% (no load to full load) |
| Output voltage setting range | AC:100-5000V ;50Hz/60Hz |
| Output voltage accuracy | ±(1% setting value+3V) |
| Breakdown current setting range | Upper limit: 0.000-9.999- -40.00mA |
| Lower limit: 0.000-9.999- -40.00mA 0.000=close | |
| Zero current | 0.000-2.000mA |
| Breakdown current measurement range | 0.050- 9.999-40.00mA |
| Breakdown current measurement accuracy | ±(1% of reading value + 5 words) |
| Rise time/slow down time | 0.0-999.9s |
| Test time setting range |
0.0, 0.1-999.9S 0,0=continuous output |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
| DC Withstand Voltage | |
| Withstand voltage test type | Cold withstand voltage test |
| Rated output load | 60VA (DC: 6000V/10mA ) |
| Output voltage adjustment rate | <2% (no load to full load) |
| Output voltage setting range | DC:100-6000V |
| Output voltage accuracy | ±(1% setting value+3V) |
| Breakdown current setting range |
Upper limit: 0.000-9.999-10.00mA; Lower limit: 0.000-9.999-10.00mA 0.000=off |
| Zero current | 0.000- -2 000mA |
| Breakdown current measurement range | 0.020-9.999-10.00mA |
| Breakdown current measurement accuracy | ±(1% of reading value+0.005mA) |
| Rise time/slow down time | 0.0-999.9s |
| Test time setting range |
0.0, 0.1-999.9S 0.0=continuous output |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
| Leakage Current | |
| Leak type setting | Static |
| Output voltage ratio |
1.1 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)
|
| Output voltage setting range | AC:0.0-3000V |
| Output voltage setting measuring range | AC:5.0-300.0V |
| Output voltage measurement accuracy | ±(1% of reading value+3V) |
| Leakage current setting range |
Upper limit: 0.000-5.000mA; Lower limit: 0.000-5.000mA 0.000=off |
| Zero current | 0.000-2.000mA |
| Leakage current measurement range | 0.050-9.999 - 20.00mA |
| Leakage current measurement accuracy | ± (1% of reading value + 5 digits) |
| Test time setting range |
0.0, 0.5-999.9S 0.0=continuous output |
| Test time setting accuracy | (0.1% setting value+0.05s) |
| Slow Charging Function Detection (Customization) | |
| Voltage setting range | AC:0.0-300.0V |
| Charging current measurement range | 0.050-9,999-32.00A |
| Test time setting range |
0-999.9S 0.0=continuous output |
| Fast Charging Function Detection (Customization) | |
| Charging voltage measurement range | DC;0.0-700.0V |
| Charging current measurement range | 0.050-9,999-63.00A |
| Test time setting range |
0.0-999.9S 0.0=continuous output |
|
|
