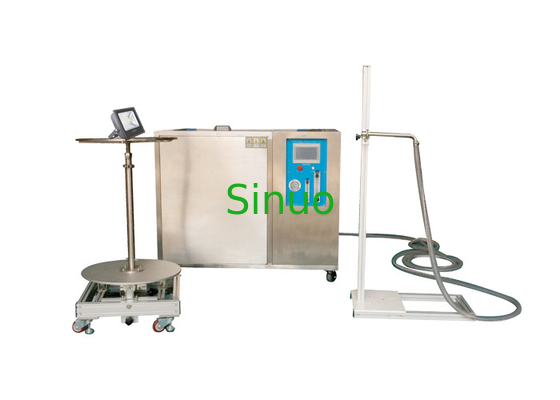

IPX5 IPX6 Hose Nozzles Water Stream Jet Test System Open Type
IPX5 IPX6 Hose Nozzles Water Stream Jet PLC Test System with Stainless Steel Water Tank
Overview:
The IPX5 and IPX6 jet nozzle testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5 and IPX6.
This IPX5/6 water ingress testing equipment ensures that thewater jet speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.
Standards compliant:
IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”
Structure:
The test equipment consists of a water jet mechanism, an electrical control cabinet, a water storage tank, a support for nozzle, and a turntable. The sample is placed on the turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles. The electrical control part and water storage tank are integrated. This whole system adopts open structure.
Technical parameters:
| Control & Operation | Push-button operation (PLC and touch screen intelligent control system is optional) |
| Nozzle Internal Diameter |
IPX5:Ф6.3mm; IPX6:Ф12.5mm
|
| Delivery Rate | IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, Manually adjustable (rotameter) |
| Water Jet Distance | 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m) |
| Water Jet Direction | The angles can be adjustable by adjusting the supports |
| Fixing Method for Nozzle | Mechanically fixed to the support |
| Pressure Gauge | 0~0.25MPa, can be displayed |
| Test Duration | 0.01S～99.9min, can be preset (standard requires likely 1min/m² or minimum: 3 min) |
| Turntable | Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50 kgs |
| Water Storage Tank | This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection. |
