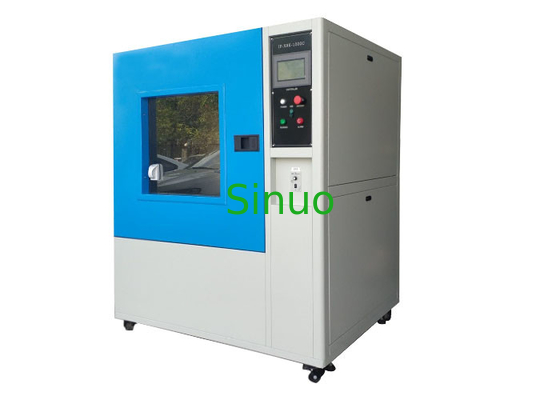

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN4412
Inner Size:
1000×1000mm×1000mm
Water Jett Pressure:
8000-10000Kpa
Water Jet Flow:
14-16L/min
Water Jet Angle:
0°, 30°, 60°, 90°
Test Water Temperature:
80±5°C
Control And Operation:
PLC And Touch Screen
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

rain test chamber

,

iec test equipment

Product Description

IEC 60529 IPX9 IPX9K High Pressure High Temperature Waterproof Test Equipment



Overview:



The high pressure and high temperature testing chamber is used to verify the protective performance of the Passenger vechiles, buses, lamps, motorcycles and other parts and components under high pressure and temperature water jetting at degree IPX9 (IPX9K)..



This equipment is designed and manufactured according to:

IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)” IPX9

ISO20653-2013 “Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access” figure 7, 8, 9 and table 7 (9K) ”

DIN40050-9 “Road vehicles-Degrees of protection (IP code)-Protection against foreign objects,water and access Electrical equipment>figure 8and table 8 (9K) ”



Structure Features:



The device is composed of a chassis, a water spray mechanism, a high-pressure high-temperature device, a turntable and an electrical control cabinet.

1. The outer casing of the chamber is made of high-quality steel plate. The inner chamber and the turntable are all made of SUS304 stainless steel to ensure waterproof and anti-corrosion. The test chamber has its own water circulating system, and has a water collecting device inside. The test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.

2. 4 standard nozzles are installed in the 0°, 30°, 60°, 90° position of the ring bracket.

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber 0

Jet Schematic Diagram



3. The built-in water heating thermostat device ensures that the test water temperature meets the standard requirements. The high-pressure water is supplied by the high-pressure water pump through the frequency conversion, and the water jetting flow can be preset on the touch screen.

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber 1

High Temperature and High Pressure Water Pump (Imported from Italy)



4. The test chamber is equipped with a turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions.

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber 2



5. The water heating, constant temperature, water pressure, water flow, water spray time, cycle program process and the turntable rotation action are controlled by the electrical control cabinet.



Technical Parameters:



Control & Operation PLC and touch screen intelligent control system
Chammber Size

Inner size: WDH=1000×1000mm×1000mm

Outer size: WDH=1500×1200mm×1900mm

Fan Jet Nozzles Manufactured according to IEC 60529 figure 7, or can be customized
Water Jett Pressure 8000-10000Kpa
Water Jet Flow

14-16L/min

Equiped with high temperature and high pressure electronic flowmeter

IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber 3

Water Jet Angle 0°, 30°, 60°, 90°
Test Duration 30s per position
Overall Test Time 0-99H59M59S, can be preset
Test Water Temperature 80±5°C
Distance between Nozzle and Sample

a) for small enclosures (largest dimension less than 250 mm): R125±25mm

b)for large enclosures (largest dimension greater or equal to 250 mm): R175±25mm

Impact Force The set-up for measuring the impact force of the water jet is according to IEC 60529 figure 10
Turntable Diameter: Φ600mm, rotation speed: 1-10r/min, bearing capacity:≤ 50kgs
Power Load to Sample Optional, provide test socket, AC220V
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.
Safety Protection Phase sequence protection, leakage protection, short circuit protection, water shortage protection, abnormal protection.
