Single Station Vehicle Testing Equipment Non - Rewireable Accessories Mechanical Strength Flexing Test
  • name

Single Station Vehicle Testing Equipment Non - Rewireable Accessories Mechanical Strength Flexing Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1109
Control Method:
PLC
Test Station:
Single
Drive Mode:
Servo Motor
Flexing Angle:
0-360° Adjustable
Flexing Rate:
0-60 Cycles/min Adjustable
Flexing Cycles:
0~999999 Cycles Adjustable
Highlight:

automotive test equipment

,

automobile testing equipments

Product Description

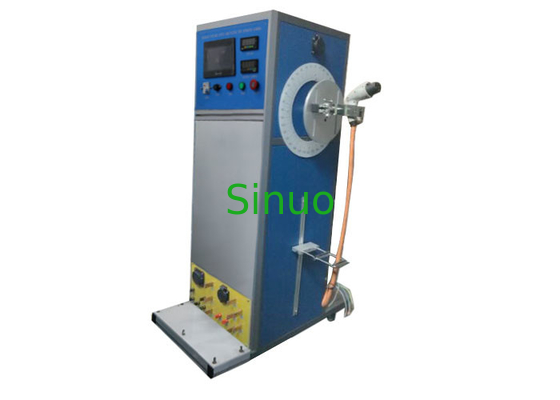

Vehicle Non-rewireable Accessories Mechanical Strength 90° Flexing Testing Apparatus



Standards & Clauses:



IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 26.4, figure 14

IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.4, figure 9



Samples and Restrictions:



Electric vehicle charging interfaces (plug, socket-outlets, vehicle connectors), industrial purpose plugs, socket-outlets and couplers.



Application:



Used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.



Test Principle:



Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.



Structure:



The device is driven by a servo motor, with mounting aluminum plate for large size samples, it can realize that the oscillation axis matches the cord entering point as much as possible when clamping the sample, thereby achieving a minimum lateral displacement of the flexible cable and load.

Single Station Vehicle Testing Equipment Non - Rewireable Accessories Mechanical Strength Flexing Test 0

Dimensions & Weight​:



Power supply: AC220V±10%,50/60Hz, power 3KW, or match client’s local power supply requirements

Dimensions: about W1000*D800*H1600mm

Weight: about 150kg



Technical Parameters:



Test Station Single
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor
Sample Clamping Method Mechanical clamping, the position of clamping point is adjustable
Flexing Angle 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Flexing Rate 0-60 cycles / min, can be preset
Flexing Cycles 0~999999 can be preset, default 20000 cycles
Load Weights 20N, 25N, 50N, 75N, 100N
Load Power External, load cabinet with adjustable voltage between conductors 0-250V and current AC0-400A adjustable is optional
Test Judgment Judging by the signals given when the current is conducting or not

Tags:

automotive test equipment,

car test equipment,

automobile testing equipment
