Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus
  • name

Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1108
Control Method:
Manual
Impact Energy:
1～6J
Hammer Anvil:
Ф50
Impact Angle:
25°, 35°, 36°, 42°, 47°, 52°
Pendulum Material:
Steel Pipe
Pendulum Length:
1m
Highlight:

automotive test equipment

,

automobile testing equipments

Product Description

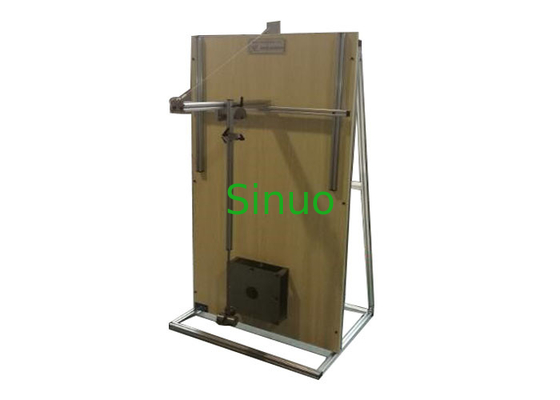

Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus



Standards & Clauses:



IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.2, figure 7



Samples and Restrictions:



Electric vehicle charging interfaces (plug, socket-outlets, vehicle connectors), industrial purpose plugs, socket-outlets and couplers.



Application:



To verify the mechanical strength of the vehicle plugs, socket-outlets and couplers accessories.



Test Principle:



The equivalent mass striking element is free released at a certain height, after the conversion of gravitational potential energy to kinetic energy, to achieve the required impact energy.



Structure:



The mounting bracket can be adjusted from front to back and left to right, and the impact angle is adjustable.

Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus 0

Dimensions & Weight​:



Dimensions: about W500*D500*H1500mm

Weight: about 60kgs



Technical Parameters:



Operation Method Manual operation
Impact Weight 50*16mm; 304# stainless steel 0.25Kg impact weights
Combined Impact Weight

0.5Kg (low energy) (2 pieces of 0.25Kg weights),

1Kg (high energy) (4 pieces of 0.25Kg weights)
Impact Energy 1～6J(The impact hammers can be interchangeable)
Hammer Anvil Ф50
Impact Angle 25°, 35°, 36°, 42°, 47°, 52°
Pendulum Support Structure Can move back and forth, left and right and can rotate 90°
Pendulum Material Steel pipe with outer diameter of 10 mm and wall thickness of 1.0 mm
Pendulum Length 1m, from the pivot to the center of the impact element
Mounting Plate 8mm thick stainless-steel plate, made according to the customer's specified aperture and position, default one set
Impact Height 776mm, 833mm
Vertical Board Plywood
X/Y/Z Axis Stroke Movable range is greater than 300 mm
