IPX1~IPX6 Comprehensive Water Ingress Testing Equipment , Stainless Steel Chamber IEC 60529

IPX1~IPX6 Comprehensive Water Ingress Testing Equipment , Stainless Steel Chamber IEC 60529

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN4419
Chamber Inner Material:
Stainless Steel
Inner Size:
W 900mm * D900mm * H1050mm
Control:
PLC+Touch Screen
IP Code:
IPX1 IPX2 IPX3 IPX4 IPX5 IPX6
Observation Window:
Transparent Tempered Glass
Turntable Rotation:
1 -5r/min
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

iec test equipment

,

water resistant test equipment

Product Description

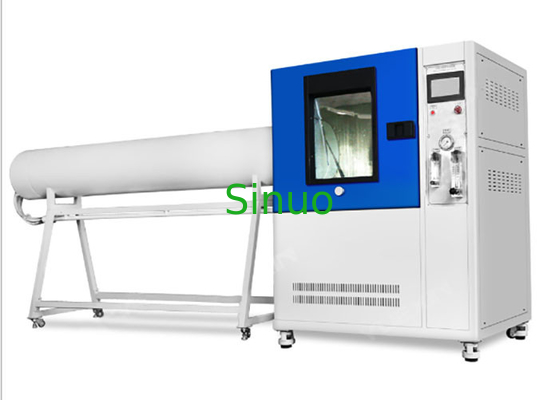

IEC 60529 IPX1~IPX6 Comprehensive Water Ingress Waterproof Stainless Steel Test Chamber​





Overview:



Application background: Natural water (rain, sea water, river water, etc.) damages products and materials. The damage causes unpredictable economic losses every year, mainly includes corrosion, fading, deformation, strength reduction, swelling, mold, etc. especially for electrical product that is easily broken into a fire due to a short circuit caused by rain. Therefore, IP code testing for specific products or materials is an essential key procedure.



Application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.



Equipment function: The equipment is for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.



Standards compliant: IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code).



Equipment Features:



1. It is suitable for IPX1, IPX2, IPX3 , IPX4, IPX5, IPX6 waterproof grade test.



2. The shell is made of high-quality steel plates, beautiful and durable.



3. The drip board, inner chamber, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.



4. The drip tank is with vacuum designed and high-rust stainless-steel construction; the nozzle contact position adopts brass cone design, which is convenient for installing the spray nozzle.



5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.



6. With compressed air-drying function, after the test is completed, the excess water in the drip tank can be removed to avoid prolonged water fouling and block pinholes. (Note: users need to provide compressed air supply).



7. The turntable uses a stepping motor, the speed can be set on the touch screen, can reach to the speed of 1 rev/min required by the IPX1 standard, and the IPX2 test of dripping 2.5 minutes in 4 positions separately can be automatically completed.



8. The oscillating tube is driven by high-quality servo stepping motor, the swinging speed and angle are precisely adjustable, and here is no out-of-step problem (out of step: it will cause the malfunction of the oscillating tube, the oscillating tube may hit the middle turntable shaft, and cause equipment damage).



9. The IPX3/4 spray nozzle and IPX5/6 hose nozzles are made according to following:

IPX1~IPX6 Comprehensive Water Ingress Testing Equipment , Stainless Steel Chamber IEC 60529 0IPX1~IPX6 Comprehensive Water Ingress Testing Equipment , Stainless Steel Chamber IEC 60529 1

10. A power outlet is built-in this chamber, the power on/off time for specimen can be controlled by the program: power off (0-999min), power on (0-999min), power off (0-999min).



11. A waterproof LED lighting is installed in the test chamber, and there is a large observation window on the door to facilitate the observation of the test inside the chamber.



12. The equipment comes with a water tank for recycling water, user does not need to build a professional waterproof test room. There is a float valve in the water tank, which automatically controls the water inlet and has the function of high and low water level alarm monitoring, to effectively prevent the pump from being damaged due to dry water shortage.



13. The core control components adopt the 7-inch touch screen + Mitsubishi or Panasonic PLC; the electrical components adopt imported branded ones such as LG and Omron; the wiring process conforms to the international standard requirements, the layout of the electric board is reasonable, the wiring is firm, and the marking is clear.



14. Self-developed IPX waterproof level test operation interfaces, operator directly select the relative waterproof level on the touch screen to process corresponding IP Code testing as per standard requirements automatically, the operation is simple and humanized.



15. The base of the equipment is equipped with 4 movable brake casters for easy movement and fixing.

IPX1~IPX6 Comprehensive Water Ingress Testing Equipment , Stainless Steel Chamber IEC 60529 2

Technical Parameters:



Basic Parameters
Chamber inner size W 900mm* D 900mm* H 1050mm
Chamber external size About W 1350mm* D 3400mm* H 1750mm
Turntable diameter ¢400mm (Can be equipped with ¢200mm, optional)
Turntable maximum load bearing 50KG
Turntable lifting height 400-750 mm
Turntable tilt angle 0° or 15°(horizontal direction)
Turntable rotation speed 1 -5r/min (accurately adjustable)
Turntable rotation direction Always forward / positive and negative alternate / intermittent rotation
Flow adjustment method Manually adjust the flow by adjusting the flow meters on the panel
Testing time 0-999 min
Total equipment weight 250kg
IPX1 IPX2 Technical Parameters
Drip area 600*600mm
IPX12 nozzle size Diameter 0.4mm
Distance between drip holes 20*20 mm
Water flow IPX1=1mm/min; IPX2=3mm/min
Drip board lifting method Not lifting (fixed)
IPX3 IPX4 Technical Parameters
Oscillating tube radius size R400mm(Can be equipped with ¢200mm, optional)
R400 oscillating tube water flow IPX3=1.1L/min; IPX4=1.8L/min
Water spray aperture size 0.4mm
Water spray aperture distance 50mm
Oscillating tube inner diameter 15mm
Oscillating tube angle 120º(IPX3), 350º(IPX4)or defined
Oscillating tube swing angle 240° back and forth, 4S; 720° back and forth 12S (precise control) or defined
IPX5 IPX6 Technical Parameters
IPX5 nozzle aperture 6.3mm
IPX6 nozzle aperture 12.5mm
IPX5 water jet flow 12.5±0.625 L/min
IPX6 water jet flow 100±5L/min
Water pressure (Mpa) Regulate the pressure according to prescribed water flow
Water jet distance 2.5m (nozzle away from the center of the turntable)
Nozzle fixing method Mechanical fixing
Electrical Parameters
Equipment power supply 380V or meet client’s local power supply
Test sample power supply 220V or meet client’s specimen power supply
Equipment power 3.0KW or meet client’s local power supply
Security protection Leakage protection, water shortage protection, short circuit protection
