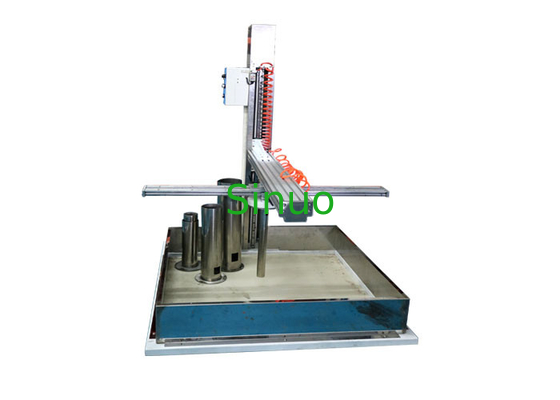

IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus
  • name
  • name
  • name
  • name

IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2206
Energy:
2, 5, 10, 20, 50J Optional
Striking Elements:
500g,1.7kg,5 Kg, 5 Kg,10 Kg Optional
Impact Point:
Adjustable
Release Method:
Electromagnet
Highlight:

electrical installation test equipment

,

glow wire test equipment

Product Description



IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus



Standards & Clauses:



IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC60598-1:2017 “Luminaries-Part1: General requirements and tests”

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code) ”



Samples and Restrictions:



Enclosures of household and similar electronic and electrical products, luminaires



Application:



It is used for the impact resistance test of the enclosures of household and similar electronic and electrical products and their accessories, luminaires, etc., to assess the safety performance and strength level of the products.



Test Principle:



Test Eha:Pendulum Hammer, the striking element is free released at a certain height through a 1 m pendulum tube,impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.



Structure:



Cantilever frame,electric lift, the striking element is released by the electromagnet, fix the striking element to the height of fall through the conduit, the impact point is adjusted by XY axis movement.

IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus 0

Technical Parameters:



Energy / J 2, 5, 10, 20, 50J are optional

Striking Elements

(Equivalent Mass)

 500g,1.7kg,5 kg,5 kg,10 kg ,please refer to the following table 1
Conduit Each striking element is equipped with a dedicated conduit
Impact Point The device has X and Y axis guides to move the release device over the entire bottom area
Height of Impact Point 0-1000mm,electric adjustable
Height of Fall Please refer to table 2, fixed by the conduit
Release Method Electromagnet release
Bottom Plate Nylon base plate thickness 8mm, hardnessHRR85-100,1000m×1000m


Table 1 Striking element characteristics

Energy / J

≤1

±10%

2

±5%

5

±5%

10

±5%

20

±5%

50

±5%
Equivalent Mass ±2%kg 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel
R/mm 10 25 25 50 50 50
D/mm 18.5(20) 35 60 80 100 125
f/mm 6.2(10) 7 10 20 20 25
r/mm - - 6 - 10 17
l/mm Adjusted according to the Equivalent Mass, see Appendix A


Table 2 Height of Fall

Energy /J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent Mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.25 0.5 1.7 5 5 10
Height of Fall ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.



Table 3 Relationship of IK code and corresponding energy

IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20

Note 1. If higher impact energy is required, the recommended value is 50J.

Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a Unprotected according to this standard




Tags:

electrical test equipment,

electrical appliance tester,

IEC test equipment

Recommended Products
IEC 60335-2-84 Comprehensive Mechanical Strength Testing Machine For Toilet Seat Video

IEC 60335-2-84 Comprehensive Mechanical Strength Testing Machine For Toilet Seat

Contact Now
IEC60335-2-24 Household Appliance Refrigerated Door Endurance Test Machine Video

IEC60335-2-24 Household Appliance Refrigerated Door Endurance Test Machine

Contact Now
IEC 60335-2 Cordless Kettle Irons Blenders Stand And Withdrawn Endurance Test Apparatus Video

IEC 60335-2 Cordless Kettle Irons Blenders Stand And Withdrawn Endurance Test Apparatus

Contact Now
IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation Video

IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation

Contact Now
IEC 60335-2 Household Electrical Appliances Microwave Oven Door Endurance Tester Video

IEC 60335-2 Household Electrical Appliances Microwave Oven Door Endurance Tester

Contact Now
IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor

IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor

Contact Now
IEC 60335-2-7 Tumble Washing Machine Door Endurance Testing Equipment

IEC 60335-2-7 Tumble Washing Machine Door Endurance Testing Equipment

Contact Now
IEC 62552:2015 Refrigerator Door Switch Durability Tester

IEC 62552:2015 Refrigerator Door Switch Durability Tester

Contact Now
IEC 61855 Figure 13-14 Hair Straightener Tension Uniformity Tester with graph illustrated Video

IEC 61855 Figure 13-14 Hair Straightener Tension Uniformity Tester with graph illustrated

Contact Now
Adult Arm Test Probe According to IEC 62841-4-6:2022 Figure 105 for Safety Evaluation

Adult Arm Test Probe According to IEC 62841-4-6:2022 Figure 105 for Safety Evaluation

Contact Now
IEC 62841-4-6:2022 figure 104 Young Adult Arm Test Probe Simulate Young Arm

IEC 62841-4-6:2022 figure 104 Young Adult Arm Test Probe Simulate Young Arm

Contact Now
products
PRODUCTS DETAILS
Products

Electrical Appliance Testing Equipment

Energy Efficiency Lab

Vehicle Testing Equipment

Battery Testing Equipment

Switch Life Tester

Led Testing Equipment

Water Ingress Testing Equipment

Environmental Test Chamber

Flammability Test Chamber

EMC Test Equipment

Medical Device Testing Equipment

IEC 62368 Test Equipment

Test Equipment For Electric Lab
IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus
  • name
  • name
  • name
  • name
IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus
MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2206
Energy:
2, 5, 10, 20, 50J Optional
Striking Elements:
500g,1.7kg,5 Kg, 5 Kg,10 Kg Optional
Impact Point:
Adjustable
Release Method:
Electromagnet
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
Highlight

electrical installation test equipment

,

glow wire test equipment

Product Description



IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus



Standards & Clauses:



IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC60598-1:2017 “Luminaries-Part1: General requirements and tests”

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code) ”



Samples and Restrictions:



Enclosures of household and similar electronic and electrical products, luminaires



Application:



It is used for the impact resistance test of the enclosures of household and similar electronic and electrical products and their accessories, luminaires, etc., to assess the safety performance and strength level of the products.



Test Principle:



Test Eha:Pendulum Hammer, the striking element is free released at a certain height through a 1 m pendulum tube,impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.



Structure:



Cantilever frame,electric lift, the striking element is released by the electromagnet, fix the striking element to the height of fall through the conduit, the impact point is adjusted by XY axis movement.

IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus 0

Technical Parameters:



Energy / J 2, 5, 10, 20, 50J are optional

Striking Elements

(Equivalent Mass)

 500g,1.7kg,5 kg,5 kg,10 kg ,please refer to the following table 1
Conduit Each striking element is equipped with a dedicated conduit
Impact Point The device has X and Y axis guides to move the release device over the entire bottom area
Height of Impact Point 0-1000mm,electric adjustable
Height of Fall Please refer to table 2, fixed by the conduit
Release Method Electromagnet release
Bottom Plate Nylon base plate thickness 8mm, hardnessHRR85-100,1000m×1000m


Table 1 Striking element characteristics

Energy / J

≤1

±10%

2

±5%

5

±5%

10

±5%

20

±5%

50

±5%
Equivalent Mass ±2%kg 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel
R/mm 10 25 25 50 50 50
D/mm 18.5(20) 35 60 80 100 125
f/mm 6.2(10) 7 10 20 20 25
r/mm - - 6 - 10 17
l/mm Adjusted according to the Equivalent Mass, see Appendix A


Table 2 Height of Fall

Energy /J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent Mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.25 0.5 1.7 5 5 10
Height of Fall ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.



Table 3 Relationship of IK code and corresponding energy

IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20

Note 1. If higher impact energy is required, the recommended value is 50J.

Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a Unprotected according to this standard




Tags:

electrical test equipment,

electrical appliance tester,

IEC test equipment
