IPX6K9K Water Ingress Testing Equipment High Temperature Water Spray Stainless Steel Chamber

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood
Delivery Period:	30 Days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	10 Sets Per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN4422

Material:

Stainless Steel

Inner Size:

1500 X1500 X1500mm

Controller:

Siemens PLC

Testing Range:

IPX6K/9K

Highlight:

rain test chamber

iec test equipment

Product Description

IPX6K9K High Temperature Line Speed Rain Water Spray Testing Equipment

Overview:

The test chamber is made of high-quality materials and processed by the most advanced processing equipment in the China. The surface of the outer chamber is spray-coated, beautiful and smooth. The color is coordinated, and the lines are smooth and natural. The inner is made of international high quality stainless steel. The indoor sample holder and other accessories are made of stainless steel or copper. The design is reasonable and durable. Under the premise of complying with standards, the equipment is more practical and easy to control based on the stability of all aspects.

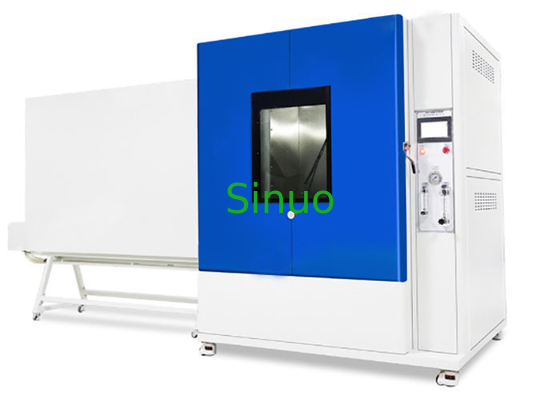

The whole chamber of the waterproof test equipment adopts the whole structure and is divided into three parts: upper, lower and right. The upper part is the working chamber, the lower part is the mechanical room, and the right side is the electrical control cabinet.

IPX6K9K Water Ingress Testing Equipment High Temperature Water Spray Stainless Steel Chamber 0

It is used to inspect the IEC enclosures for the electrical equipment (IP supplementary code test), in accordance with the relevant specifications in the DIN40050 standard. Mainly for the provision of automotive parts, motor and electronics industry, simulation of natural environment or human factors designed waterproof test machine.

IPX6K9K Water Ingress Testing Equipment High Temperature Water Spray Stainless Steel Chamber 1

This equipment is designed and manufactured according to Clause 14.2.9 of IEC 60529:1992+A2:2013, ISO 20653-2006, QC/T 413-2002, DIN40050-9.

Technical Parameters:

Dimensions
Inner size	1500 x1500 x1500mm (can be customized)
Outer size	2000x3800x2450mm (DWH)
IP9K
Water temperature	80±5°C (hot water injection test, high pressure thermal spray)
Rotary table	Diameter:Φ800mm. Load bearing≤50kg (can be customized)
Location of nozzles	0°, 30°, 60°, 90°, average distribution vertical direction
Number of nozzles	4
Water flow	14-16L/min
Spray pressure	8000~10000Kpa
Distance from nozzle to sample	100-150mm
Rotary table rotation speed	5±1r.p.m
Connecting pipe	High pressure stainless steel hydraulic pipe
Solenoid valve	Italian high temperature and high pressure solenoid valve
Water pump	Italian high temperature and high pressure water pump
Heater wire	6KW Germany heater wire
Test time	0-99h 59min
Controller	Germany Siemens + Siemens touch screen (other brands optional)
Spray system	4 nozzles, Install 1 nozzle every 30 °C
Outer chamber	SUS202# stainless steel plate or cold-rolled plate spray
Inner chamber	SUS304# stainless steel material
IP6K
The nozzle diameter	Ф6.3mm
Water pressure	1000kpa (Adjusted by flow)
Water flow	75±5 L/min (High voltage electronic flowmeter high pressure and high temperature)
Test time	3,10,30,9999 min, adjustable
Run time control	1-9999 min, adjustable
Spray pipe	High pressure resistant hydraulic pipe
High pressure solenoid valve	International high pressure solenoid valve
High pressure water pipe	Hydraulic high pressure hydraulic pipe
Voltage regulator	Taiwan Delta
Use Environment
Temperature	RT+10℃～＋40℃
Humidity	≤85%
Power	AC380( ±10%)V, 50Hz, (customizable), Three-phase five-wire
Power supply capacity	The grounding resistance of the protective ground wire is less than 4Ω; The user is required to configure the device with a corresponding capacity of air or power switch at the installation site, and this switch must be used exclusively for this device.
Protector	Leakage protection, short circuit protection, water shortage, motor overheating protection
