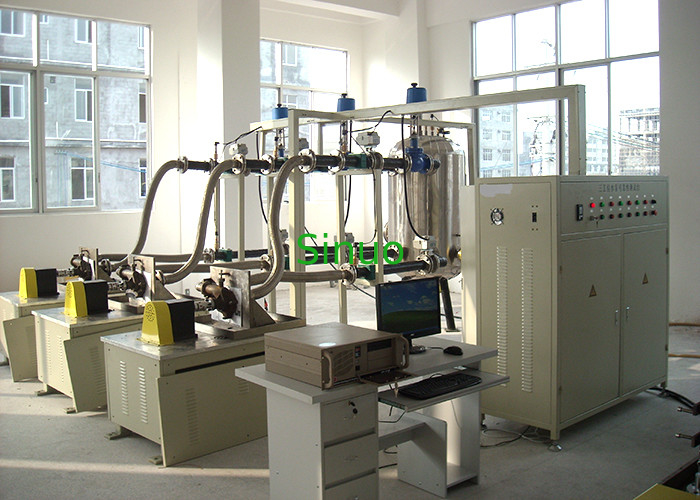

Comprehensive Performance Testing System for 5KW Household Appliance Water Pumps
Overview:
This comprehensive pump performance test system is suitable for testing various types of household appliances' pumps; the system is mainly composed of main control cabinet, flow sensor, pressure sensor and instruments. The pump motor’s voltage, current, power, flow, rotating speed, pressure, head and other data can be tested; and H-Q curve, P-Q curve, η-Q curve and (NPSH) r-Q curve can be drawn according to the data collected by the test project.
The system complies with: international standards ISO9906-2012/ national standards GB3216-2005, GB12785-2002, GB6245-2006, GB9064, machinery industry standards JB8092-96, JB5118-2001, JB8091-98, JB6434-92.
Techinical Parameters and Requirements:
|
Basic parameter requirement |
Medium | □Clear water | |
| Test pump type |
□ Centrifugal pump □ Mixed flow pump □ Axial flow pump □ Vortex pump □ Screw pump □ Well submersible pump □ Sewage submersible pump □ Small submersible pump □ Fire pump □ Magnetic pump |
||
| Voltage(V) | 0-300V | ||
| power(KW) | 0-5KW | ||
| Rotating speed(r/min) | 0-3000rpm | ||
| Flow rate(M³/h) | 0-200M³/h | ||
| Pump head(m) | 0-50m | ||
|
System Requirements |
water circulatory system | □Open style | |
| Pipe diameter(mm) | Ф25/40/50 | ||
| Flow regulation | □Manual □Electric | ||
| Axis power flow mode | □Electrometry | ||
| Test items | Electrical measuring method |
□ No-load test □ Load/performance test □ Vibration test □ Noise test □ Cavitation test |
|
| System accuracy |
Conforms to: International Standard ISO9906-2012/National Standards GB3216-2005, GB12785-2002, GB6245-2006, GB9064, Machinery Industry Standards JB8092-96, JB5118-2001, JB8091-98, JB6434-92 □ Level 1 / Level B □ Level 2 / Level C |
||
| Acquisition parameters | AC voltage, current, power, frequency, motor speed, inlet pressure, outlet pressure, flow, etc. | ||
| Pump performance analysis and calculation of main parameters, curves | Head, flow, pump efficiency, unit efficiency, shaft power, NPSH; flow at rated head, head at rated flow, actual measured intersection of pump performance; measured flow deviation, head deviation, pump efficiency deviation, etc. | ||
| Data Acquisition Analysis Mode | Computer automatic collection, analysis, printing, database management, Windows98/2000/XP interface | ||
System Diagram:
Software Interface:
(English language is available)
Sinuo can design and customize comprehensive performance testing system for all kinds of water pumps, such as household appliance's water pumps, industry water pumps, car engine cooling water pumps, washing pumps, aquarium pumps and etc. Please contact us for more information.
Video
Video
Video
Video
Video
Video
|
|
