IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package
  • name
  • name
  • name
  • name

IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package

MOQ: 1
Price: Tailored
Standard Packaging: Carton Box
Delivery Period: 5 Days
Payment Method: T/T
Supply Capacity: 1000 pcs Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN332-LP
Applied Standards:
IEC 62552,etc.
Applied UUT:
Refrigerator & Freezers
Temperature Type:
﹣1℃
Weight Types:
125g, 250g, 500g, 1000g
Weight Tolerance:
±2%
Dimensional Tolerance:
±2mm/±3mm
Highlight:

IEC 62552 M Refrigerator Package Tester

,

Refrigerator Thermal Performance M Test Package

,

Freezers Package Tester

Product Description
IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package
The M test package (hereinafter referred to as the test package) is a test package that is widely used worldwide to test the thermal performance of refrigerators, freezers, and freezers. It is safe, economical, and durable.
Composition of the Test Package
The -1℃ test package contains the following for every 1000g of filling material:
  • Hydroxyethyl methylcellulose: 230g
  • Water: 764.2g
  • Sodium chloride: 5g
  • Parachloro-meta-cresol: 0.8g
The freezing point of this filling material is -1℃, and its thermal properties are equivalent to lean beef.
Packaging material: A plastic film or suitable material having negligible water vapor exchange with the surrounding medium.

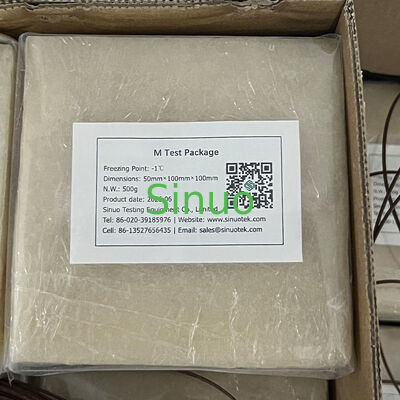

M package definition: A test package with a mass of 500g (50mm×100mm×100mm) with a thermocouple or other equivalent measuring device for temperature measurement installed at its geometric center. The thermocouple should be in direct contact with the packing, and measures should be taken to minimize external heat conduction. The thermocouple is 3.5 meters long.
Technical Parameters
Dimensions (mm) Weight (g) Dimensional Tolerance Weight Tolerance
50×100×100 500 ±2mm ±2%
IEC 62552 Refrigerator Thermal Performance Test Package - Product overview IEC 62552 Refrigerator Thermal Performance Test Package - Technical specifications
