| MOQ: | 1 |
| Price: | Tailored |
| Standard Packaging: | Plywood |
| Delivery Period: | 2 Months |
| Payment Method: | T/T |
| Supply Capacity: | 1 Set Per Month |

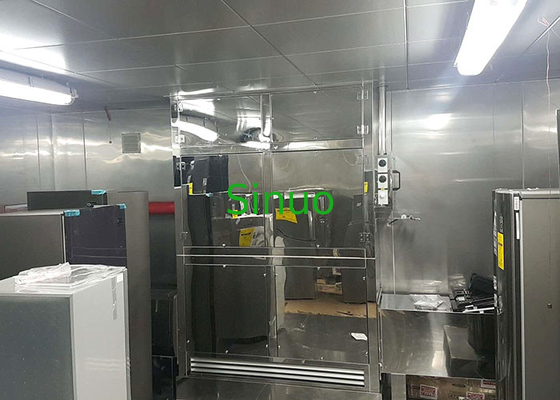

Energy Efficiency Testing Lab Temperature and Humidity Room for Household Refrigerator Freezers
Overview:
The refrigerator & freezer performance lab consists of one testing chamber, the freezing capacity, energy consumption and other performances of refrigerator and freezers can be tested. This installation can be used to test the performance of 8 household vertical refrigerators or 4 Freezers, and can also be used for other standard operating condition related tests and expanded tests, meeting the needs for product sampling inspection and product development.
In this test system, the operation of the equipment is controlled by a programmable controller and a HMI, test data are collected by a high accuracy data collector, the data can be transferred at real time to an upper level computer for processing, the test reports can be displayed, stored, output and printed through the computer.
Standards:
Design and Testing according to the following standards:
► ISO 15502: 2005(ISO 5155, ISO 7371, ISO 28187, ISO 8561)
► IEC 62552-1,IEC 62552-3
► SASO 2664
► Other standards can be customized
Types of UUT :
Household vertical refrigerator or Freezer
Testing Contents:
► Storage Temperatures
► Cooling Speed
► Energy consumption
► Freezing Test (Base ISO 15502:2005)
► Load Temperature rise time
► Ice Making Capacity,Freezing Capacity
► Voltage, Current, Power, Power factor
► Working coefficient
► Enclosure sweat test
*Detailed test method and calculation according to the standards.
Structure:
This test room consists of 2 test chambers, mainly including the room structure, 2 set of air conditioning device,
2 set of electrical control system, and 2 set of measuring system.
Test Chamber Temperature and Humidity:
| Name | Sensor | Transducer | Controller | Regulator |
| Type | R221-30 | - | UT-55A | PAC Series |
| Range |
0.00~60.00℃ 20~100%RH |
- | 0.00~100.00℃ | |
| Accuracy |
±0.2℃ ±2%RH |
- | ±0.1℃ | ±1.0% |
| Input | Pt100 Ω | - | DC 1～5V | 4～20mA |
| Output | - | - | 4～20mA | AC 1Φ 230V |
| Remark | - | - | RS485 | FUSE |
| Maker | CHINO | - | YOKOGAWA | Ximanden |
| Number | 2 | 4 | 4 |
