Freestanding Warming Drawers Durability Testing Apparatus

Other Videos
February 06, 2026
Chat Now Contact Us
Brief: Here's a fast, informative look at what this solution does and how it behaves. Watch as we demonstrate the IEC62552:2015 Freestanding Warming Drawers Durability Testing Apparatus in action, showing how it performs automated vertical drawer durability testing for insulated cabinets. You'll see the PLC-controlled system simulate manual drawer operation cycles with adjustable speed, travel, and dwell time settings.
Related Product Features:
  • Automated durability testing for freestanding warming drawers according to IEC62552:2015 standards.
  • PLC intelligent control system with 7-inch color touchscreen for easy parameter setting.
  • Servo motor-driven mechanical arms provide precise drawer opening and closing motions.
  • Adjustable test parameters including travel distance (0-470mm), speed (5-15 cycles/min), and dwell time.
  • Single station design capable of testing one cabinet with independent upper and lower drawer operation.
  • Multiple fixture options including handle fixtures and suction cups for handle-less drawers.
  • Safety features include emergency stop, leakage protection, and protective mesh for glass breakage risk.
  • Modular system design with standardized components for optimal performance and easy maintenance.
FAQs:
  • What standards does this testing apparatus comply with?
    The apparatus is designed according to IEC62552:2015 standards for freestanding warming drawers durability testing, making it suitable for certification bodies and testing laboratories.
  • How is the drawer opening and closing process automated?
    A servo motor drives mechanical arms that either pull drawer handles with soft ropes or use suction cups for handle-less drawers, opening to 15-20mm before full open and then closing completely in a controlled cycle.
  • What test parameters can be adjusted on this equipment?
    The touchscreen interface allows adjustment of test travel (0-470mm), drawer speed (5-15 cycles/min), cycle count (up to 999999), and dwell time between operations for realistic simulation.
  • What safety features are included in the testing apparatus?
    The system includes emergency stop functionality, leakage protection, short-circuit and overload protection, plus protective mesh to prevent injury from potential glass breakage during testing.
Related Videos
IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment 00:30

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment
Vehicle Testing Equipment
September 05, 2025
IEC60335-2-24 Household Appliance Refrigerated Door Endurance Test Machine 00:26

IEC60335-2-24 Household Appliance Refrigerated Door Endurance Test Machine
Electrical Appliance Testing Equipment
February 23, 2023
IEC 60884-1: 2013 Power Cord Flexing Test Apparatus For Flexible Cable Plugs 00:31

IEC 60884-1: 2013 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
Switch Life Tester
April 10, 2023
IEC 62196-3 Electric Vehicle Pressure Leak Test Overpressure Test System 00:31

IEC 62196-3 Electric Vehicle Pressure Leak Test Overpressure Test System
Vehicle Testing Equipment
June 07, 2024
EV Plug & Connector Drive-Over Test Equipment IEC 62196-1 EV Charger Durability Testing 00:23

EV Plug & Connector Drive-Over Test Equipment IEC 62196-1 EV Charger Durability Testing
Vehicle Testing Equipment
September 12, 2025
BS1363-1 Cyclic Loading Test 20A Of Plugs For Charging Electric Vehicles 250 Voltage 00:36

BS1363-1 Cyclic Loading Test 20A Of Plugs For Charging Electric Vehicles 250 Voltage
Switch Life Tester
February 04, 2026
Screwless Terminal Clamping Capacity Test Apparatus IEC 60884-1 Clause 12.3.11 00:34

Screwless Terminal Clamping Capacity Test Apparatus IEC 60884-1 Clause 12.3.11
Electrical Appliance Testing Equipment
June 17, 2025

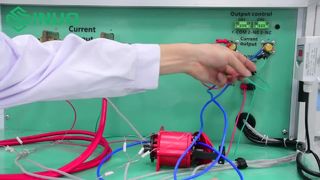

IEC 62196 Connector Temperature Rise Testing Equipment For Temperature Rise Test 00:38
