Manual Booster Pump for Chemical Battery Case Pressure Testing of Monolithic Cells

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood Case
Delivery Period:	30 days
Payment Method:	T/T
Supply Capacity:	10 Sets Per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN1123B

Control Method:

Manual Control

Drive Mode:

Manual Booster Pump

Sealing Joint:

Φ2.85±0.05mm

Test Pressure:

0.01-2.5mpa

Test Station:

Single

Test Medium:

Test Time:

0-999999s Can Be Set

Gas Capacity:

20, 30, 50, 100ml

Highlight:

Manual Booster Pump

Monolithic Cells Booster Pump

Product Description

Manual Booster Pump For Chemical Battery Case Pressure Testing Of Monolithic Cells

Product information:

Compliant with standards and clauses: IEC 60335-1: 2020-Appendix BB-20.1.

Specimens and limitations: Contains monolithic cells using metal ion chemistry.

Purpose of the test: For the measurement of the pressure generated when the enclosure of a battery-operated appliance containing a monolithic battery using metal ion chemistry withstands the battery during a fault, and to verify the enclosure strength of the battery case.

Test principle: Use the hand pump to pressurize, monitor and feedback the pressure value in real time through the pressure gauge connected to the pipeline, so that the initial pressure of the sample reaches 2070kPa±10%. Then inject the air volume required by the standard from the orifice with a diameter of 2.85±0.05mm through the air filling mechanism, and then drop it below 70kPa within 30s.

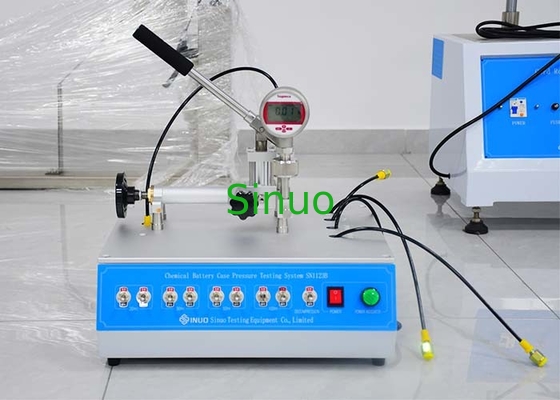

Manual Booster Pump for Chemical Battery Case Pressure Testing of Monolithic Cells 0

Structure:

The equipment is controlled by a manual booster pump, which can read the pressure value, increase the gas capacity, adjust the test pressure, test time, etc. The manual booster pump and its pressure control device have stable performance, easy operation, and beautiful appearance. With the advantages of many similar products at home and abroad, it is the first choice of major domestic measurement institutions and laboratories.

Technical parameters:

Test station	1 station
Control method	manual control, button operation
Drive mode	Manual booster pump drive
Test medium	Gas
Test pressure	0.01-2.5mpa, pressure sensor monitoring
Gas capacity	20, 30, 50, 100ml, optional
Test time	0-999999s can be set
Sealing joint	One set as standard, orifice Φ2.85±0.05mm
Test process	Manual loading and unloading test, automatic detection process
Use environment	Atmospheric pressure 80~106kpa, ambient temperature 5~40°C, relative humidity (20~80) %RH, place of use: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation
Equipment size	About 700×500×500 (mm) W×H×D
Equipment weight	100kg
Use environment	Power supply: AC220V±10%/50-60Hz, use environment: working temperature 0-40℃, humidity 30%-90%.
