IEC 60529 IPX1-IPX6 Waterproof Test Chamber 1000L for Water Ingress Testing

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN4419
Inner Chamber Size:
1000 × 1000 × 1000 Mm
Test Time:
0–999 Min, Programmable
Turntable Diameter:
Ø400 Mm
Turntable Load Capacity:
Max. 10 Kg
Drip Area:
600 × 600 Mm
Oscillating Tube:
R200 Mm / R400 Mm
Nozzle Diameter:
Ø0.4 Mm
Jet Nozzle Diameter:
Ø6.3 Mm/Ø12.5 Mm
Highlight:

1000L Waterproof Test Chamber

,

IEC 60529 Waterproof Test Chamber

,

IPX1-IPX6 Waterproof Test Chamber

Product Description
IEC 60529 IPX1-IPX6 Waterproof Test Chamber 1000L
Integrated Water Ingress Testing Solution for Electrical & Electronic Products

The Sinuo SN4419 IPX1-IPX6 Waterproof Test Chamber is an integrated water ingress testing system developed for evaluating the protection provided by electrical and electronic product enclosures against different levels of water exposure.

Designed around the testing requirements of IEC 60529, the system combines dripping, oscillating spray, water spray and powerful water jet testing in one platform, covering IPX1, IPX2, IPX3, IPX4, IPX5 and IPX6 test conditions.

With a 1000 × 1000 × 1000 mm test chamber, programmable test duration, motorized turntable and dedicated IPX1-IPX6 test accessories, this waterproof test chamber is suitable for R&D laboratories, quality inspection departments, certification laboratories and production-line validation.

It can be used for testing electrical enclosures, household appliances, lighting products, automotive electrical components, outdoor equipment, connectors, control boxes and other products requiring IP protection verification.

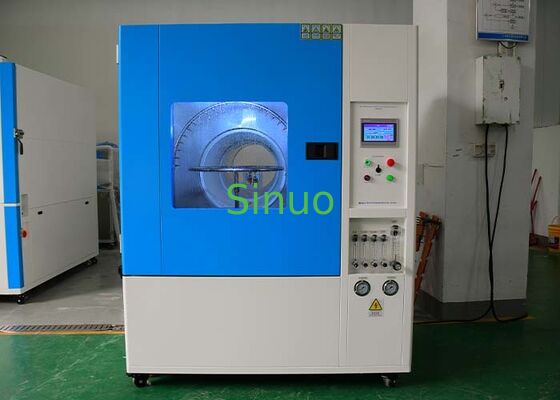

IEC 60529 IPX1-IPX6 Waterproof Test Chamber 1000L for Water Ingress Testing


Key Benefits
One System for IPX1 to IPX6 Testing

Instead of purchasing separate equipment for different water ingress levels, the SN4419 combines multiple test methods into one integrated platform.

Supported protection tests:
  • IPX1 - Vertical dripping water
  • IPX2 - Dripping water when enclosure is tilted
  • IPX3 - Spraying water
  • IPX4 - Splashing water
  • IPX5 - Water jets
  • IPX6 - Powerful water jets
Designed Around IEC 60529 Test Methods

The system is configured with dedicated water delivery components for different IP protection levels, including drip plates, oscillating tubes, spray nozzles, and jet nozzles.

Note: Final compliance evaluation should always be based on the applicable edition of the standard and the exact product/test configuration.
Motorized Turntable for Repeatable Testing

The integrated Ø 400 mm turntable supports a maximum sample load of 10 kg and operates at an adjustable speed of 1-5 rpm.

The turntable can operate in continuous forward rotation or alternate forward/reverse rotation, reducing cable twisting during powered testing.

Touchscreen + PLC Control

A 7-inch touchscreen and PLC control system provide a straightforward interface for setting and monitoring the test process.

Test duration can be programmed from 0-999 minutes with industrial-grade electrical components for reliable laboratory operation.

Sample Powered Testing

A waterproof electrical socket is installed inside the test chamber, allowing the customer to power the test specimen during water ingress testing when required by the applicable test procedure.

Integrated Safety Protection

The system incorporates multiple protection functions including:

  • Leakage protection
  • Water shortage protection
  • Short-circuit protection

IPX1-IPX6 Test Capability
IP Rating Test Method Main Configuration
IPX1 Vertical water dripping 600 × 600 mm drip area
IPX2 Dripping water with enclosure tilted 600 × 600 mm drip area
IPX3 Water spray Oscillating tube / spray nozzle
IPX4 Water splashing Oscillating tube / spray nozzle
IPX5 Water jet Ø6.3 mm jet nozzle
IPX6 Powerful water jet Ø12.5 mm jet nozzle

Technical Specifications
General Equipment Parameters
Model SN4419
Applicable Standard IEC 60529
Test Range IPX1-IPX6
Inner Chamber Size 1000 × 1000 × 1000 mm
Equipment Dimensions Approx. 2770 × 1330 × 1750 mm
Turntable Diameter Ø400 mm
Turntable Load Capacity Max. 10 kg
Turntable Speed 1-5 rpm, adjustable
Test Time 0-999 min, programmable
Control System 7-inch touchscreen + PLC
Equipment Power Approx. 3.0 kW
Power Supply AC 380 V ±10%, 50 Hz ±10%, 3-phase 4-wire + PE
Approx. Weight 350 kg
IPX1 / IPX2 Drip Test Parameters
Drip Area 600 × 600 mm
Nozzle Diameter Ø0.4 mm
Hole Spacing 20 × 20 mm
Water Flow - IPX1 1 mm/min
Water Flow - IPX2 3 mm/min
IPX5 / IPX6 Water Jet Parameters
Parameter IPX5 IPX6
Jet Nozzle Diameter Ø6.3 mm Ø12.5 mm
Water Flow 12.5 ±0.625 L/min 100 ±5 L/min
Jet Distance 2.5 m 2.5 m

Recommended Applications

The IPX1-IPX6 waterproof test chamber can be integrated into product development, quality assurance and compliance testing workflows for:

Electrical & Electronic Products
  • Electrical enclosures
  • Control cabinets
  • Power supplies
  • Switchgear
  • Electronic equipment
  • Connectors and terminals
Consumer Appliances
  • Household appliances
  • Kitchen appliances
  • Outdoor appliances
  • Electrical equipment
Automotive & EV Components
  • Automotive electrical components
  • EV charging components
  • Charging connectors
  • Vehicle-mounted electrical devices
  • Automotive enclosures
Lighting & Outdoor Equipment
  • LED lighting
  • Outdoor luminaires
  • Street lighting
  • Electrical junction boxes
  • Outdoor electronic equipment
